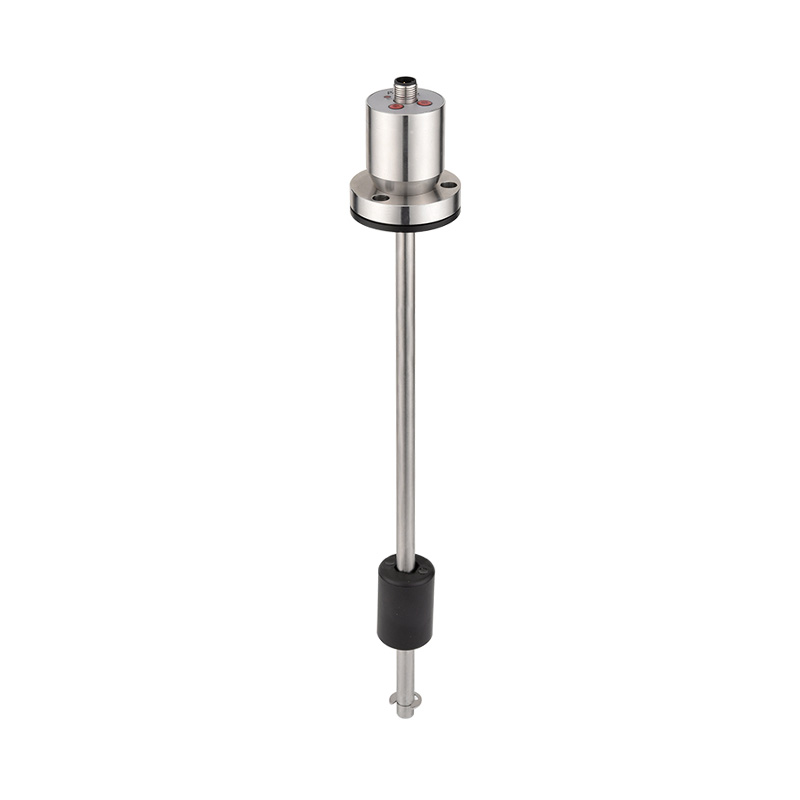

Electronic Liquid Level Switch-LF80A

Product introduction

LF80A electronic level switch detects the water level through the built-in electronic probe, and then the chip processes the detected signals, when judging that there is water, the chip outputs high level 24V or 5V, etc. (PNP type), and when judging that there is no water, the chip outputs 0V. High and low level signals are read by the PLC or other control circuits and drive the pumps and other electrical appliances to work.
Under the action of liquid buoyancy, the float moves up and down along the guide bar, continuously triggering the magnetic switch in the guide bar, which controls the number of resistors on or off, converting the change of liquid level into resistance change, and the resistance value is converted into a standard electrical signal output after processing by the rear circuit.

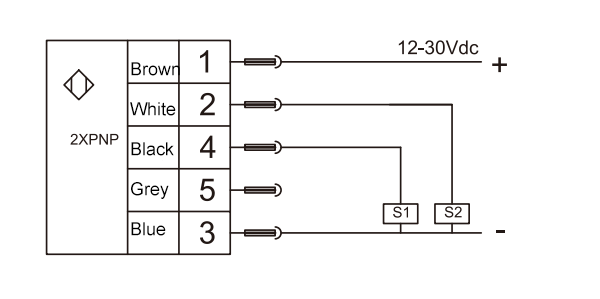

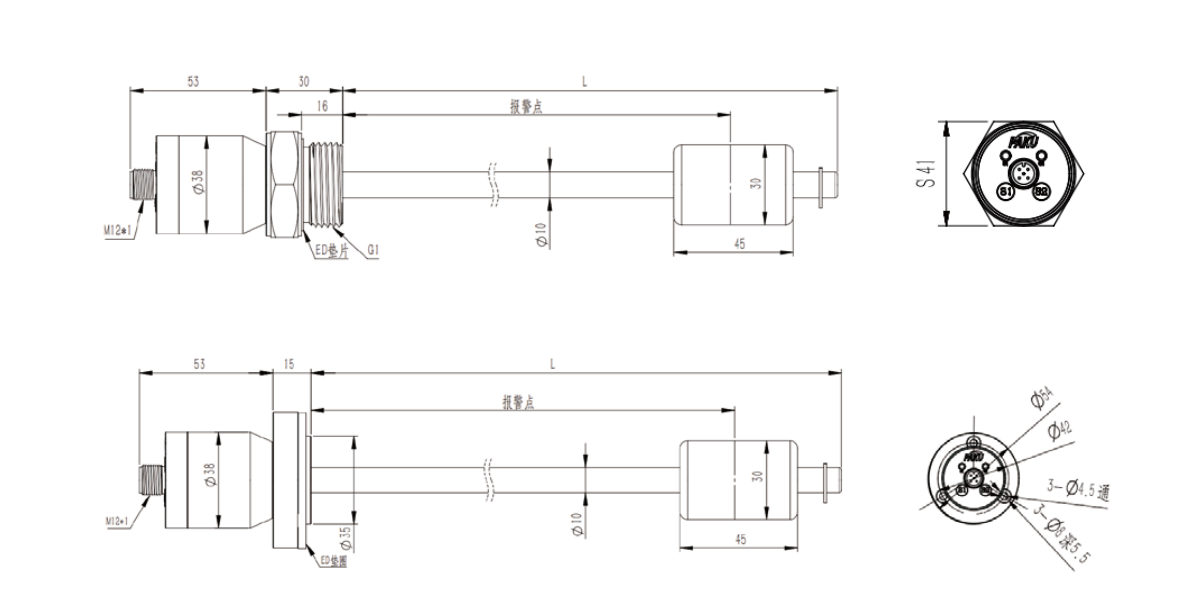

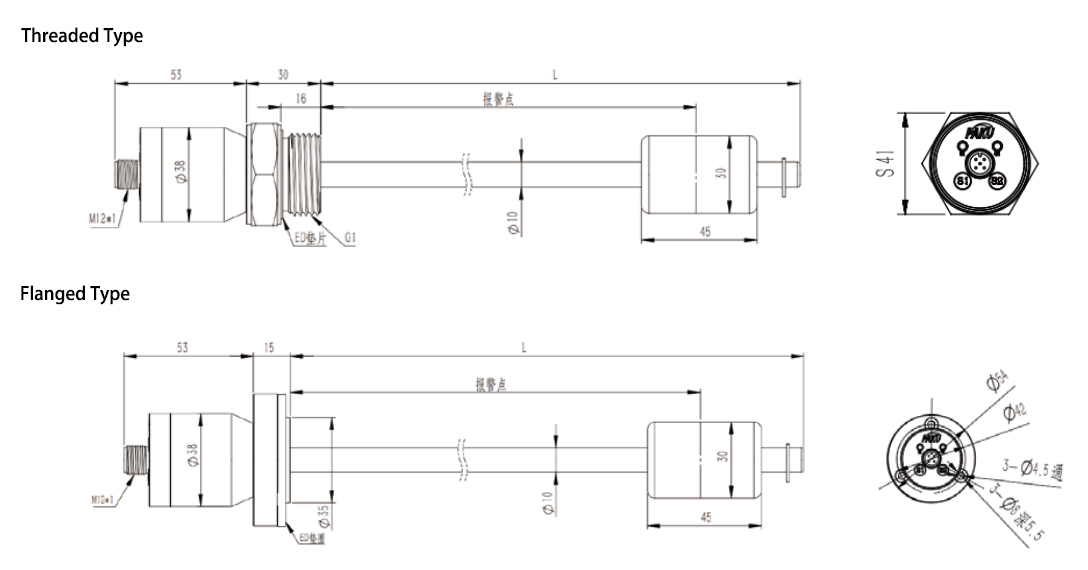

Technical Parameters Wiring Diagram Dimension Drawing Selection Table

-Supply voltage: 12.... .30Vdc
-No-load current consumption: 30mA max, 24Vdc power supply
-Switching output:
-Output type: PNP, NPN optional normally open and normally closed can be set.
-S1, S2 Output current: <500mA Response time <10ms
-Load RA:≤0.5KOhm
-Linearity: ≤ 1.5% of range
-Wiring protection: reverse phase, overload, short circuit protection
-Stability (annual drift): ≤ ± 0.3% range
-Temperature: medium temperature: -20..... .80°C
Ambient temperature: -20.... .80°C
Storage temperature: -30.... .80℃ Storage temperature: -30...80℃
Material: Shell: Stainless steel 304
Media contact part: Stainless steel 304
-Protection class: IP65
- Outlet: M12x1 connector

LF80A- P L.. N.. F.. G1H Q Details
LF80A-             LF80A series electronic level switch
  P           PNP output
    L         Range customisation: L =mm
S1 alarm point setting N..       Normally open, e.g. 100mm normally open, option: N100
F..       Normally closed, e.g. 100mm normally closed, option: F100
S2 Alarm point setting N..     Normally open, e.g. 300mm normally open, option: N300
F..     Normally closed, e.g. 300mm normally closed, option: F300
          G1H   Interface male thread : G1
          D   Flange connection
              Customised thread
            Q M12 *1 Connector
* The selection table is for parameter selection only, and is shipped with the corresponding code of the parameter.
* Alarm point from the electronic to the end of the bin to move the value of the smaller
