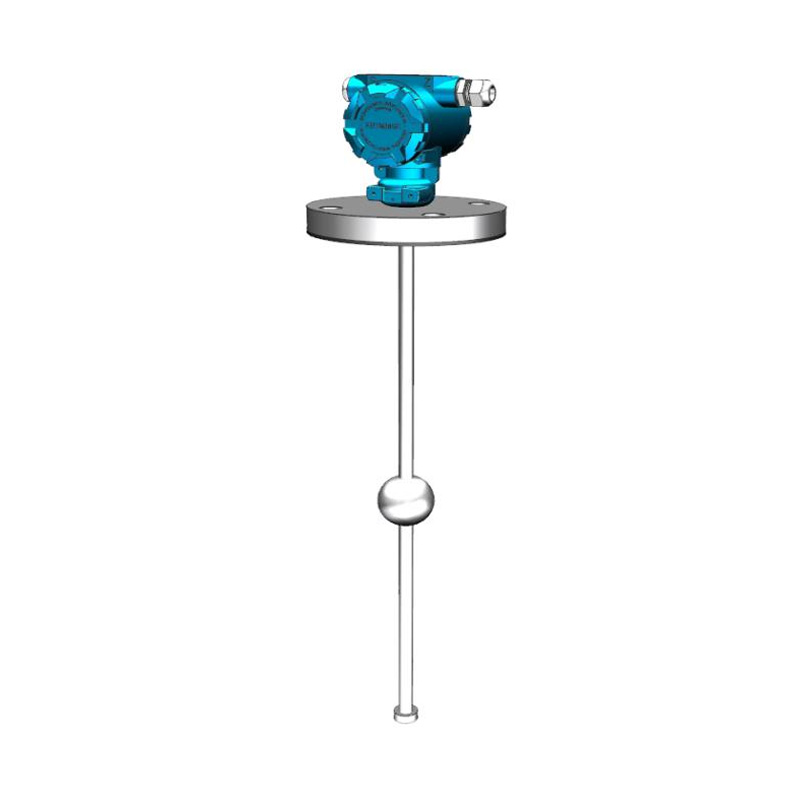

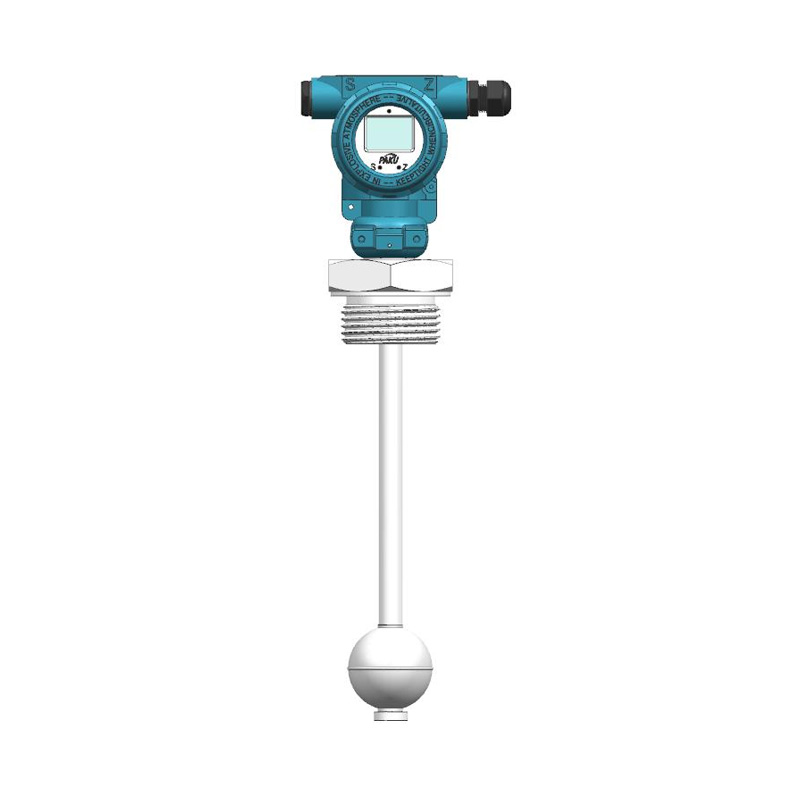

Product 3D Image
Get coupons

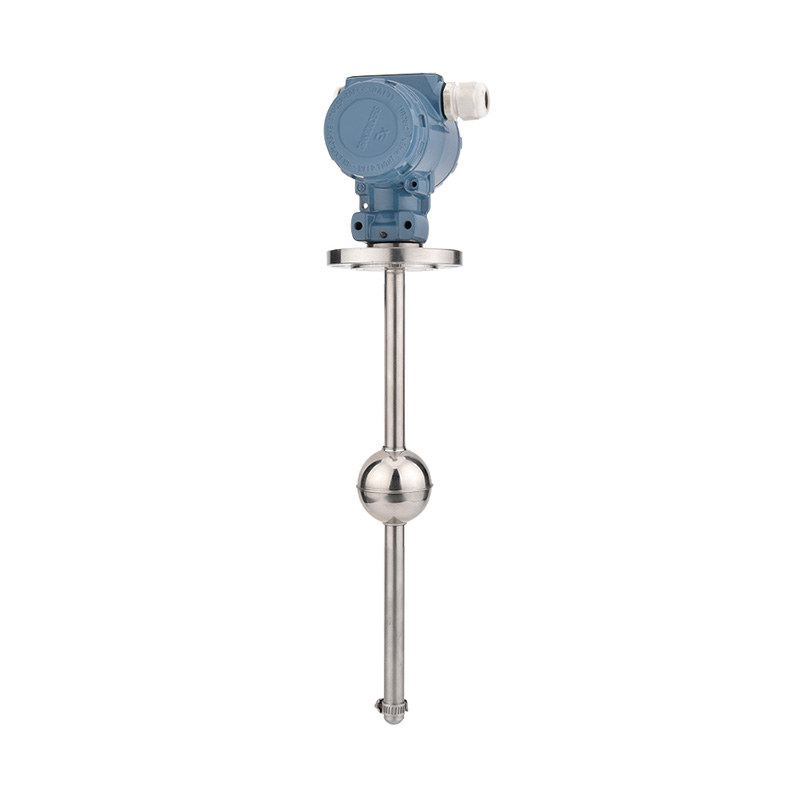

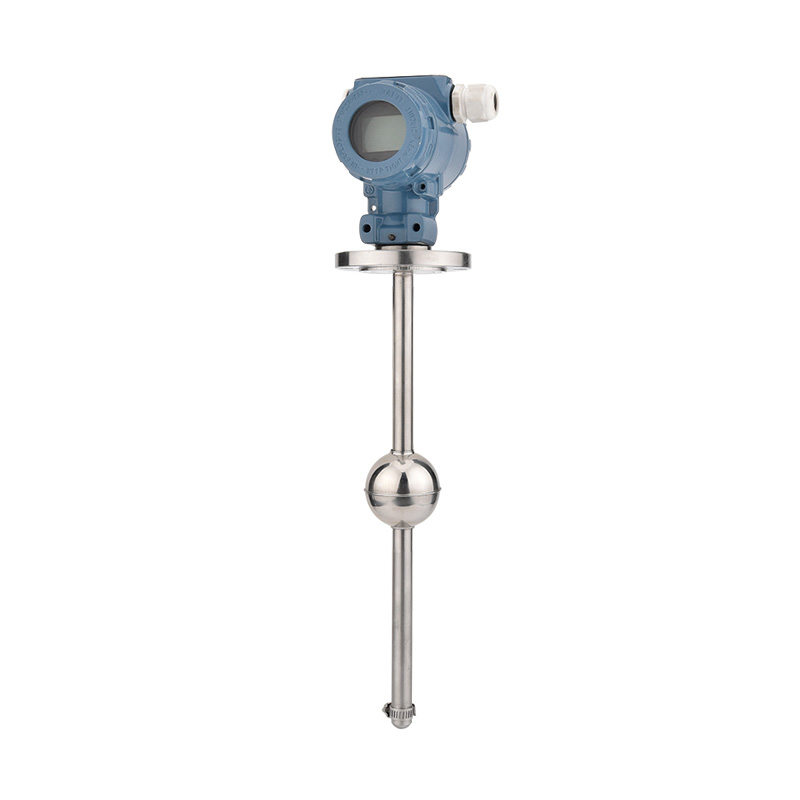

Product introduction

As the liquid level changes, the magnetic floating ball constantly starts the reed switch in the testing rod, which makes the total resistance of the sensor change, and the signal is converted to the standard 4-20mA signal output by the transmitter.
LF710 series of low price, long life, can be used for liquid level limit monitoring or continuous monitoring. It can be used with monitoring instrument to realize upper and lower limit alarm or continuous control.

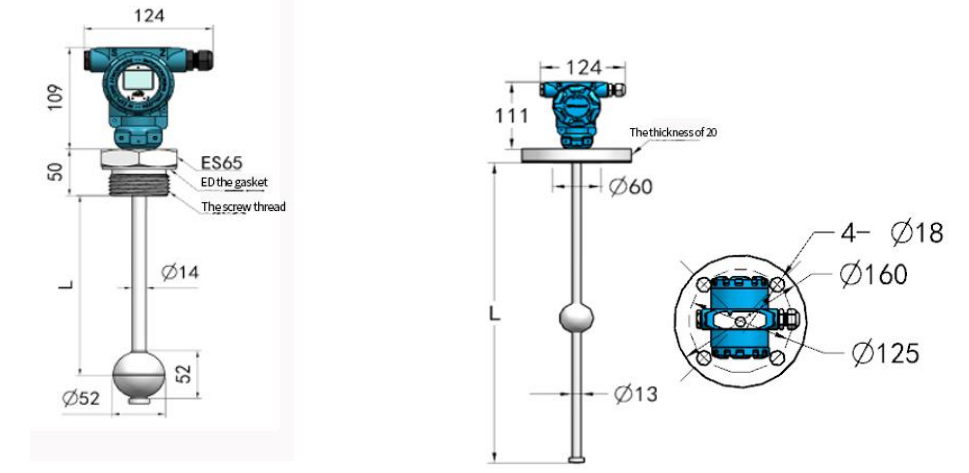

Product Application Technical Specification Wiring Diagram Dimension Figure Selection Table

Used for liquid level measurement with density ≥0.75g/cm3

-Maximum pressure: 5bar
-medium temperature: -10℃--130℃
-medium density: ≥0.75g/cm3
-Switching quantity output type:
Contact type: Dry reed tube switch
Contact capacity: 250VAC. 0.5A
Output: normally open or normally closed
-Analog output type:power supply:24 ±5% DC
Output: 4-20mA analog quantity
load: ≤750Ω
-Protection grade: IP65
-Wiring mode: directly attached wire
-Material:stainlesssteel

LF710- A L A G X B specification
LF710-               LF710 series floating ball type liquid level
sensor
  A             Strip show
  B             no display
    L           Measurement  range: special custom  L=
mm
      A         Analog quantity 4-20mA output type
      B         Analog quantity 1-5V output type
        E2       DN25 flange connection
        E5       DN50 flange connection
        G1       G1 female thread connection
        G2       G2 female thread connection
          X     Installation and connection material: 304
stainless steel
          XL     Installation and connection material: 316L
stainless steel
          P     Installation    connection    material:    PP
polypropylene
          XC     Installation    and    connection    material:
stainless steel lined tetrafluorine flange
            X   Float material: stainless steel (Φ45) > G1
"thread
            F   Float material: anti-corrosion
              Basic Sets
              Explosion-proof device
* The type selection table is only for technical selection, and the corresponding type of the factory model is reflected by the
code.
