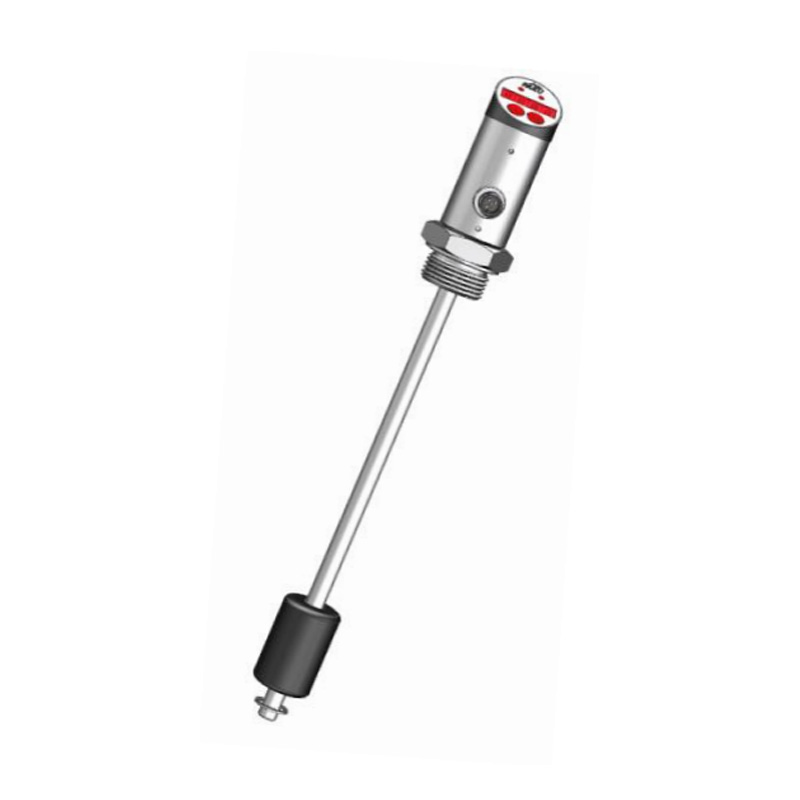

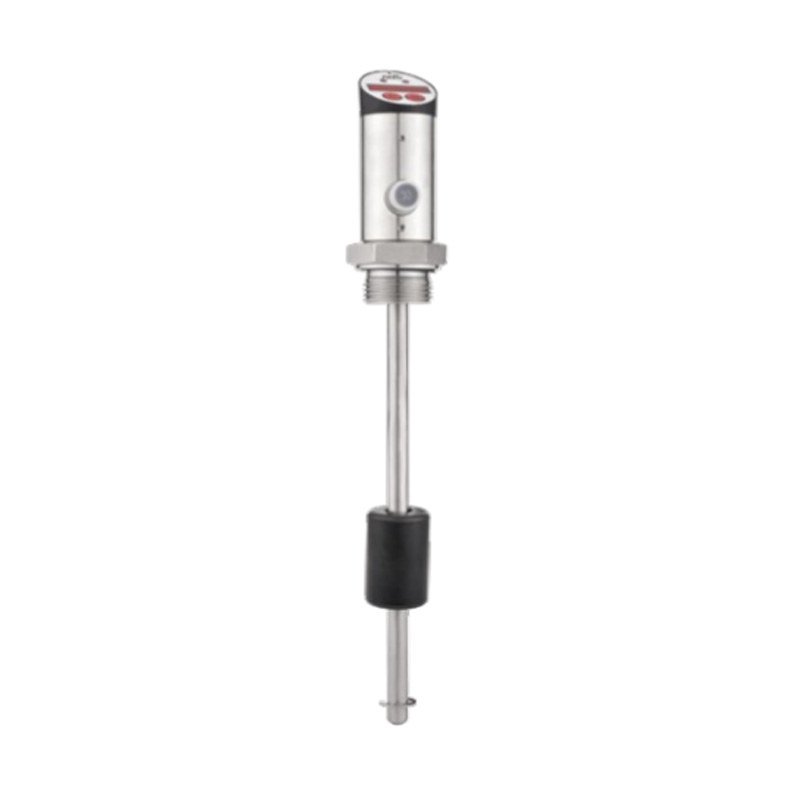

Product 3D Image Get couponsLF60C series of high-precision sensors for temperature measurement, the signal processed by the rear processing circuit is converted into standard industrial electrical signal output and display. Float ball is in the closed non-magnetic stainless steel tube equipped with a dry reed tube, the floating ball is equipped with an annular magnetic ring, the floating ball moves with the rise or fall of the liquid level, thus triggering or releasing the magnetic reed switch in the stainless steel tube, sending a switch signal.
-Full metal housing design
-Highlight LED digital display, so that this series of products can be used in various industrial occasions.
-Double key design and user-friendly menu make the product easier to use.
-Multiple connection modes can fully meet various specific installation requirements.
-The display head can rotate 330° to ensure the best viewing Angle under different installation modes.
-Food/Pharmaceutical
-power plant
-petrifaction
-Pulp/paper
-water treatment
-boiler
Measurement range: user-defined
Measurement medium: corrosive compatible with 304 stainless steel liquid
Pressure: 50bar
Medium density: ≥0.7g/cm³
Power supply voltage: 12... 30Vdc

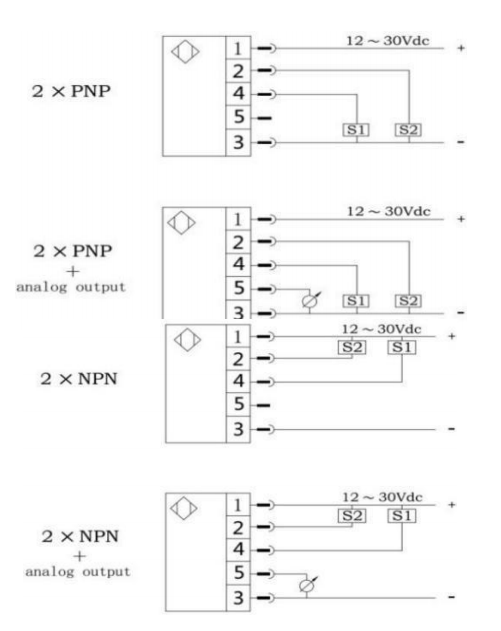

No-load current consumption: maximum 30mA, 24VDC power supply switched output:Output type: PNP, NPN optional normally open normally closed can be set S1, S2 output current: <500mA
Response time <10ms
Switch accuracy: ≤ ±0.5% range
Current type analog output: ≤ ±0.5% range
Output type: 4... Can be set to 20 ma
load RA:≤0.5KOhm
Linearity: ≤ 1.5% range
Wiring protection: reverse phase, overload, short circuit protection
display:Design: red 4-bit 8mm high brightness LED Display range: 999... 9999
Accuracy: ≤ ±0.5% range
Stability (annual drift) : ≤ ±0.3% range
temperature:Medium temperature: 0... 100℃(special range can be customized)
Ambient temperature: -20... 80 ℃
Storage temperature: -30... 80 ℃
materials :Shell of the watch head: engineering plastic Shell: 304 stainless steel
Medium contact part: stainless steel 304
Float ball: 304 stainless steel or NBR material (can be customized)
Protection grade: IP67
Outgoing way: M12X1 connector
LF60C- | A | P | A | 1 | S | 50 | N | 60 | N | B | specification | |
LF60C- | LF60C series electronic liquid level display temperature integrated switch sensor |
|||||||||||
A | 2 liquid level switches +1 temperature switches | |||||||||||
B | 1 level switch +1 level analog 4-20mA output +1 temperature switch |
|||||||||||
C | 1 liquid level switch +1 liquid level analog output 1-5V +1 temperature switch |
|||||||||||
D | 1 liquid level analog 4-20mA output +2 temperature switching quantities |
|||||||||||
E | 1 liquid level analog quantity 1-5V output +2 temperature switching quantity |
|||||||||||
F | 2 level switches +2 temperature switches | |||||||||||
P | PNPoutput | |||||||||||
N | NPNoutput | |||||||||||
A | Thread connection with external thread | |||||||||||
B | flanged joint | |||||||||||
C | Sanitary chuck connection | |||||||||||
1 | Interface thread: G1 | |||||||||||
Custom thread | ||||||||||||
S | M12*1 connector (standard with 2 meters wire) | |||||||||||
50 | The first temperature alarm point: temperature = ℃ | |||||||||||
N | Temperature normally on output | |||||||||||
F | Temperature normally closed output | |||||||||||
60 | The second temperature alarm point: temperature = ℃ | |||||||||||
N | Temperature normally on output | |||||||||||
F | Temperature normally closed output | |||||||||||
B | Float material: NBR | |||||||||||
X | Float material: 304 stainless steel | |||||||||||
G | Float material: high temperature resistant | |||||||||||
S | Special customization (corrosion resistance) | |||||||||||
* The selection table is only available for parameter selection, and the corresponding code is delivered. |
