Center Outlet Specialized Level Switch - LF22

PREV: Tuning Fork Resonance Density Meter (Concentration Meter) - LF100C
It is the last article

Product introduction

The LF22 level switch uses a magnetically induced reed switch. The float guide rod is equipped with an annular magnetic ring. As the float moves up or down with the liquid level, it triggers or releases the reed switch inside the stainless steel tube, sending a switch signal.
It can be installed at the top or bottom, with a compact and robust structure, reliable performance, good repeatability, long service life, and high temperature resistance.

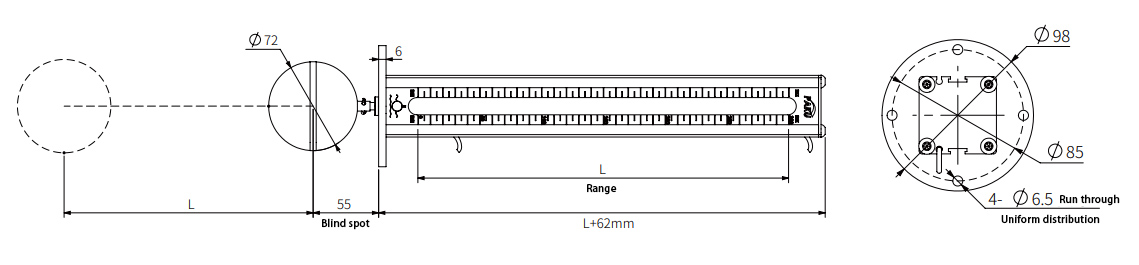

Technical Parameters Product Application Dimension Drawing Model Selection Table

Measuring stroke: Customizable by user

Medium temperature: -20℃ to 80℃

Medium density: ≥0.75 g/cm³

Switch output type:

Contact type: Magnetic reed switch

Contact capacity: 250 VAC, 0.5 A

Output: Normally open

Protection rating: IP65

Wiring method: Direct lead-out

Materials:

Float: Stainless steel

Body: Alumina

Display window: Engineering plastic

Used for liquid level measurement where density ≥ 0.75 g/cm³.

LF22 -	L	N	D	1	Details
LF22 -					LF22 Series Center Outlet Specialized Level Switch
	L				Measurement range: Special custom L1 = ___ mm
		N			Normally open
		F			Normally closed
			D		Flanged connection
					Special custom
				1	1 switch output
				2	2 switch outputs
				..	Switch outputs customized per customer requirements
Note: The model selection table is for technical selection only. The factory model corresponds to the selected model via coding. Measurement strokes of 200mm, 300mm, 400mm are optional.
