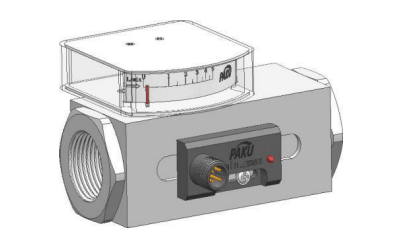

Product 3D Image
Get coupons

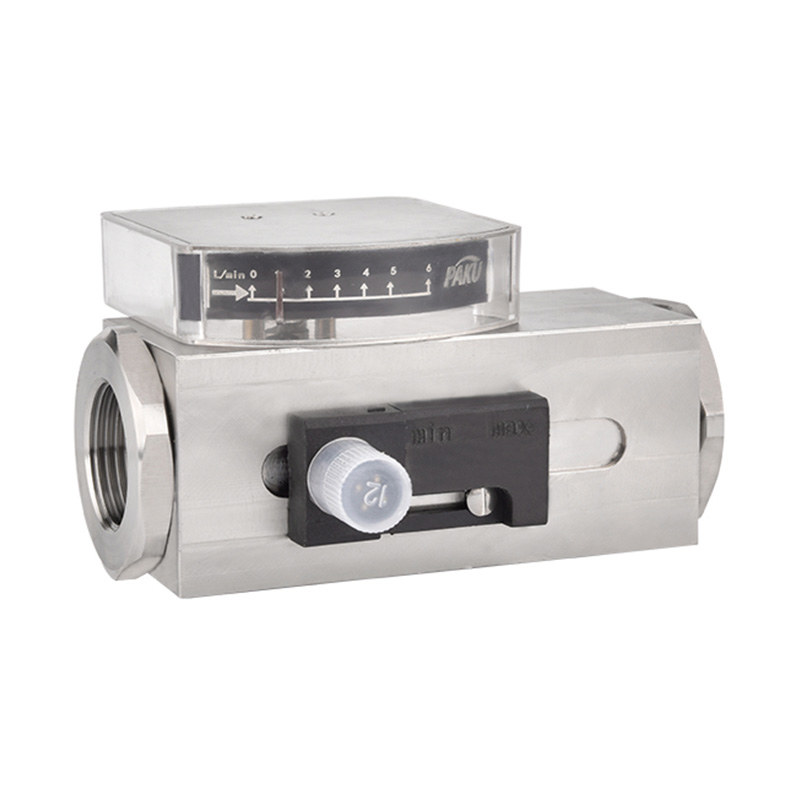

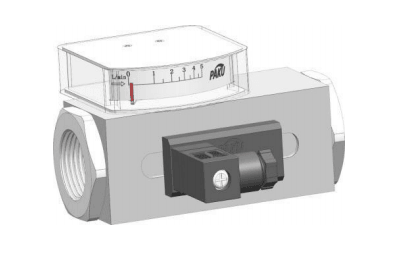

Pointer Piston Flow Switch-SN21

Product introduction

The Piston Flow Switch contains a precision spring supported magnetic piston that pushes the piston backward, which triggers an external microswitch or reed switch.
All-metal internal construction
-Optionally available with a pointer type flow switch
-High reliability and repeatability of the switch.
-Complete isolation of mechanical and electronic parts
-High voltage resistance
-Normally open output

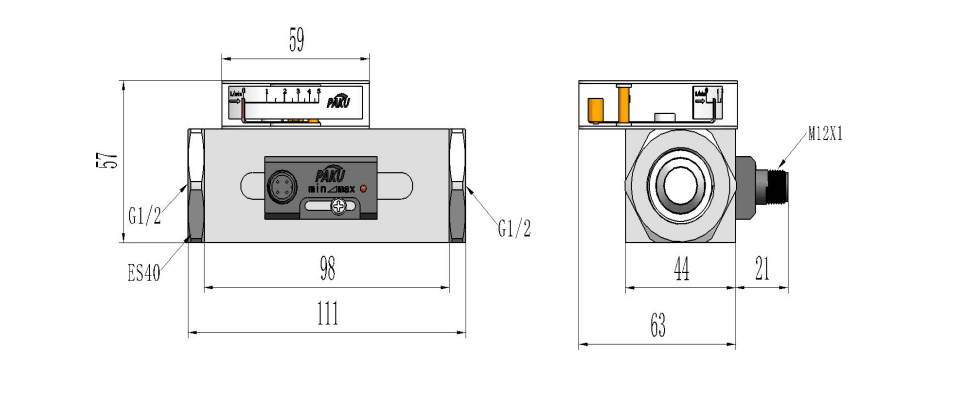

Technical Specification Insertion Fitting Wiring Diagram Dimension Figure Applied Range Installation Instructions Selection Table

Test medium: liquid
Repeatability:≤±3% range
Pressure resistance: 200bar (stainless steel type)
100bar (brass type)
Output mode: normally open
Switch capacity: 24VAC /110VDC,1.5A
Ambient temperature:-20...70℃.
Material: Electronic shell part: engineering plastic
Switch housing: stainless steel/brass nickel plated
The pointer displays the material PC
Spring: stainless steel
Protection grade: IP65
Outline: M12*1

Hersman type

hydraulic pressure
lubrication
circulatory system

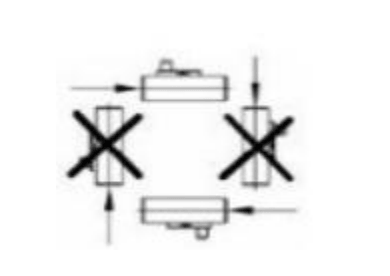

The location of installation affects the switch value

SN21 - 008  G D A A specification
SN21 -             SN21 series pointer piston type flow switch
    008            Interface thread G1/4
    010            Interface thread G3/8
    015            Interface thread G1/2
    020            Interface thread G3/4
    025            Interface thread G1
      G         internal thread
        D       DC DC24V±20% power supply
        J       AC AC230V ± 15% power supply
              Brass nickel plated housing
              stainless steel housing
            A   Setting range: 0.4--4L/min
            B   Setting range: 1--12L/min
            C   Setting range: 5--40L/min
            D   Setting range: 6--60L/min
              A Connector type (standard with 2 meters of
wire)
              B Straight out
              C Hirschmann
 * Factory standard electrical accessories M12 connector type ZL02-PU02
 * Customizable thread, H for external thread, G for internal thread
 * Please indicate medium flow direction, medium type, pipe diameter and expected set value when ordering. We can
 complete the setting for you at the factory
 * For gaseous media, please indicate pressure (gauge pressure/absolute pressure), temperature and type of media
 * For selection of electrical accessories and installation accessories, please refer to the appendix page on page -
 * The selection table is only available for parameter selection, and the corresponding code is delivered.
