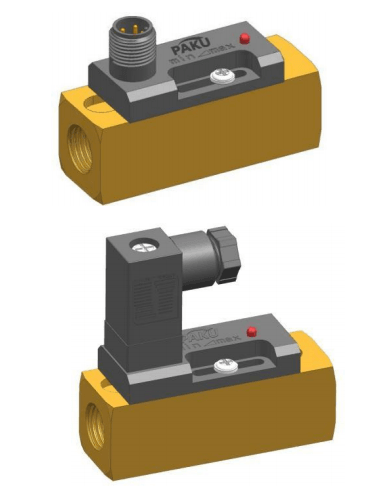

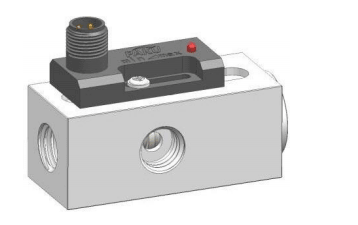

Product 3D Image
Get coupons

Piston Type Micro Flow Switch-SN31C

Product introduction

SN31C micro flow switch is divided into A type B type, A type is side outlet type, accurate measurement, not easy to block, not affected by the medium, B type belongs to the straight-through type of high requirements on the medium. In-line installation, mechanical flow switches for liquid or gaseous media. Robust plastic, aluminium or stainless steel housing available. Extremely low pressure loss, good repeatability, dirt immunity, complete isolation of the mechanical and electronic parts, for economical use with small flow rates. With a switching scale that can be set by the user in the field according to the range, LED display of the switching status.

Product Application Picture Technical Specification Selection Table

Pneumatic liquid dual purpose, industrial automation/mechanical equipment/air compression industry/refrigeration and air conditioning.

Setting range: See parameters for details
Accuracy: ± 5% of total range
Hysteresis: Set the action point: 1L/min
LED display: DC power supply LED display switch state,AC without LED display
Wiring mode: M12 connector/Hersman
Output: Dry reed switch
Pressure: 10bar(brass)
Medium temperature: 90 C Max
Protection grade: IP65/IP67
Material: Aluminum alloy shell
Connection material brass
Display window PE
Piston: POM plastic and brass
Spring: stainless steel
seal:NBR

SN31C- A G4K A D specification
SN31C-                 SN31C series piston type micro flow
  A               Model A (side out)-- (maximum flow
  A1               Model A side display type
  B               Model B (through)-- (maximum flow
    G4K             Internal thread G1/4 of interface
                  Custom thread
                DC DC24V±20% power supply
                aluminium alloy housing
                Brass shell
                Stainless steel case (special order)
                Range: 0.02 to 1.2 L/min
            A     Connector type (standard with 2 meters of
            B     Hersman type
                1 switch point output
                D LED indicating lamp
                W No LED indicator
                B Side display: magnetic bead scale
  *Custom interface thread: H for external thread, K for internal thread.
  *For selection of electrical accessories and installation accessories, please refer to the appendix page on page -.
  * The selection table is only available for parameter selection, and the corresponding code is delivered.
