Mechanical glass tube flow switch-SN31B

Product introduction

Inline installation, mechanical flow switch for liquid or gas media. Rugged housing available in plastic, aluminum, or stainless steel. Extremely low pressure loss, good repeatability, strong resistance to contamination, and complete isolation between mechanical and electronic components. Designed for small-flow, economical applications. Equipped with a switch point scale — no on-site adjustment required by the user. Flow rate is indicated on the graduated glass tube.

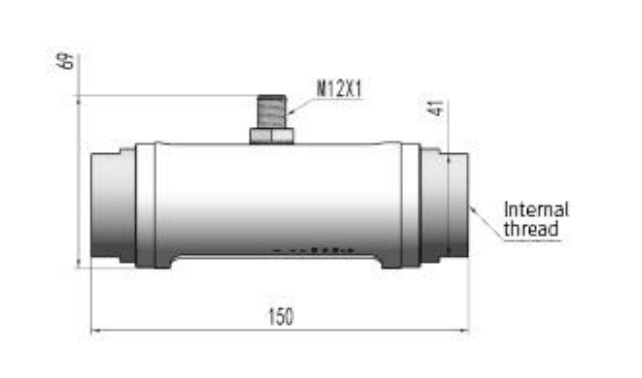

Product Application Dimension Figure Technical Specification Selection Table

Dual-use for gas and liquid. Industrial automation / Machinery / Air compression industry / Refrigeration / Lubrication systems / Air conditioning.

Setting Range: See parameter details
Accuracy: ±5% of full scale
Hysteresis: Depends on the switching point, minimum 3L/min
Wiring Method: M12 connector / Direct cable output
Output: Reed switch
Pressure Resistance: 10 bar
Medium Temperature: Max 90°C
Protection Class: IP65
Material:
Housing: Aluminum alloy (viewing window in PE material)
Piston: POM plastic
Spring: Stainless steel

SN31B - A G L A

Detailed

SN31B -                 SN31B series glass tube flow switch
    A               Interface thread: G1/2
    B               Interface thread: G3/4
    C               Interface thread: G1"
                  DC DC24V±20% power supply
        G           internal thread
          L         Process connection: aluminum alloy
          X         Process connection: stainless steel
                  aluminium alloy housing
                  Range: 3-30L/min
                  Range: 5-50L/min
                  Range: 8-80L/min
                A   Connector type (standard with 2
                B   Straight out
                  1 switch point output
                  2 switching points output
 * Customizable thread, H for external thread, G for internal thread
 * For selection of electrical accessories and installation accessories, please refer to the appendix page on page -
 * The selection table is only available for parameter selection, and the corresponding code is delivered。
