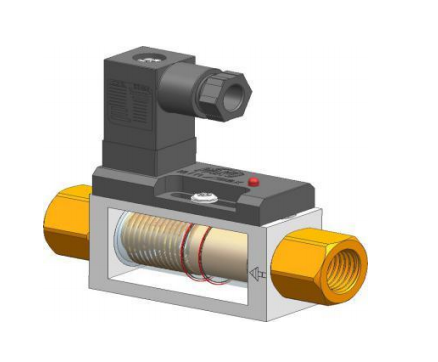

Product 3D Image
Get coupons

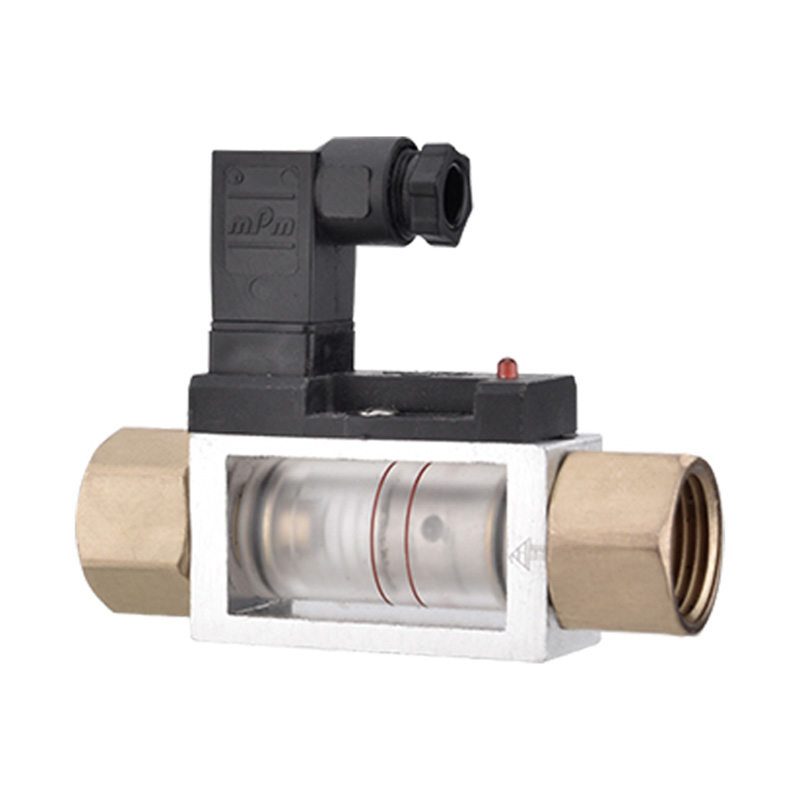

Glass tube flow switch-SN31

Product introduction

Inline installation, mechanical flow switch for liquid or gas media. Rugged housing available in plastic, aluminum, or stainless steel. Features extremely low pressure loss, good repeatability, strong resistance to contamination, and complete isolation between mechanical and electronic parts. Suitable for small flow, economical applications. Comes with a switch point scale — no on-site setting required by the user. LED display indicates switch status.

Technical Specification Hersman Type Selection Table Product Application

Setting range: See detailed parameters
Accuracy: ±5% of full scale
Hysteresis: Switching point: 1L/min
LED Display: LED indicates switching status (DC power only; no LED for AC)
Wiring Method: M12 Connector / Hirschmann Connector
Output: Reed switch
Pressure Resistance: 10 bar (Brass)
Medium Temperature: Max 90℃

Protection Class: IP65 / IP67
Material:
Housing: Aluminum alloy
Connection Material: Brass
Viewing Window: PE
Piston: Aluminum
Spring: Stainless steel
Seal: NBR

SN31- D A A

Detailed

SN31-                 SN31 series glass tube flow switch
                Interface thread G1/4
                Interface thread G1/2
                DC DC24V±20% power supply
                AC AC230V ± 15% power supply
      D           LED indicator (24V power supply
      W           No LED indicator
        A         internal thread
                aluminium alloy housing
                The action point 0.5 1.5 L/min
              A   Connector type (standard with 2
              B   Hersman type
                1 switch point output
 *Customizable thread, H for external thread, G for internal thread
 * For selection of electrical accessories and installation accessories, please refer to the appendix page on page -
 * The selection table is only available for parameter selection, and the corresponding code is delivered.

Dual-use for gas and liquid. Industrial automation / Machinery / Air compression industry / Refrigeration and air conditioning.
