Product introduction

SN54D series wheel flow sensor and an intelligent flow switch, is a compact flow sensor, with a small size, easy to set up and other advantages, built-in intelligent circuit, can be set arbitrarily flow upper and lower limits of the alarm value, you can remotely monitor the real-time flow conditions, the full parameters on-site arbitrary settings, its impeller measuring medium through the flow through the sensor intelligent circuit processing arbitrary programming.
Hall-type pulse output, open collector PNP/NPN, strong driving ability
-High chemical resistance characteristics
-IP65 protection level, suitable for harsh field environment
-Plug-in type for easy installation
-Good stability, strong anti-interference ability
-Good reliability, maintenance-free

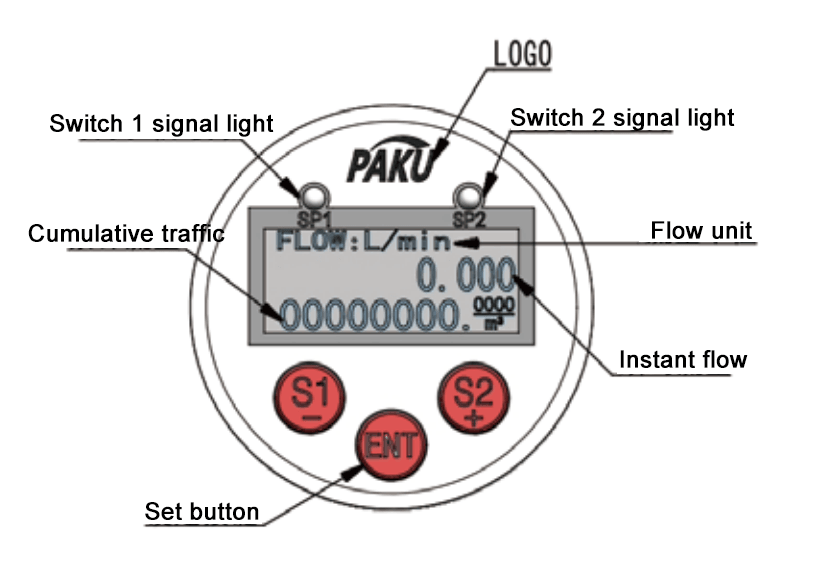

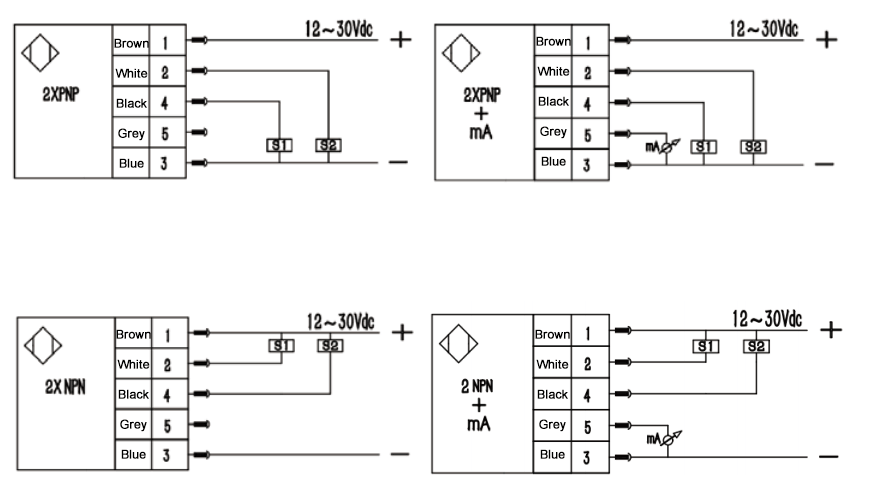

Parameter Table Technical Indicators Wiring Diagram Panel Diagram Dimension Drawing Selection Table
Called the diameter
DN( mm)
Flow range( m³/H) G
Internal thread
G
External thread
Lower limit Upper limit Lower limit Upper limit Lower limit Upper limit
10          0.2  1.2  G3/8 G1/2
15      0.6  0.6  G1/2 G1
20          0.8  G3/4 G1
25      1.6  10  10  G1 G1-1/4
32          1.5  15  G3/8 G1-1/2
Flow rate range 0.15 ~6m/s
Pipe diameter range DN10-DN32
Supply Voltage DC 5 ~24V
Repeatability accuracy/linearity accuracy ± 1.5℅full scale
Temperature Pressure PP body 12.5bar@25℃    5bar@90℃
PVDF body 14.0bar@25℃ 1.7bar@100℃
PVDF body 14.0bar@25℃    5bar@100℃
Overcurrent components Sensor body POM/ PVC /stainless steels
O-Ring FPM/EPDM
Impellers PP
Bearings/Shafts High temperature oxidation picks ZrO2 (ceramic)

SN51D P A... A A Detailed description
SN51D-                 SN51D series impeller flow sensor
  A               Pipe diameter:  DN10
  B               Pipe diameter:  DN15
  C               Pipe diameter:  DN20
  D               Pipe diameter:  DN25
  E               Pipe diameter:  DN32
  DN. . .               Specify the specific pipe diameter when ordering
    P             PNP output
    N             NPN output
                Female thread connection
                External thread connection
        A         Impeller material:  PP
                Body material:  POM
                Body material:  PVC
                Body material :stainless steel
                Body material:  PDF
            A     Spindle: ZrO2
                Display material: POM
                Display material: stainless steel
                Two switching outputs
                Two switching + analogue 4-20mA outputs
                Two switching + pulse output
* The selection table is for parameter selection only, and will be shipped with the corresponding code for the parameter.
