Impeller Flow Sensor-SN50D

Product introduction

SN50D series wheel flow sensor and an intelligent flow switch, is a compact flow sensor, with a small size, easy to set up and other advantages, built-in intelligent circuit, can be set arbitrarily flow upper and lower limits of the alarm value, you can remotely monitor the real-time flow conditions, the full range of parameters on-site arbitrary settings, and its impeller measuring medium through the flow through the sensor intelligent circuit processing arbitrary programming.
Hall-type pulse output, open collector PNP/NPN, strong driving ability.
-High chemical resistance
-IP65 protection class, suitable for harsh field environment.
-Plug-in type for easy installation
-Good stability and anti-interference capability
-Good reliability, maintenance-free

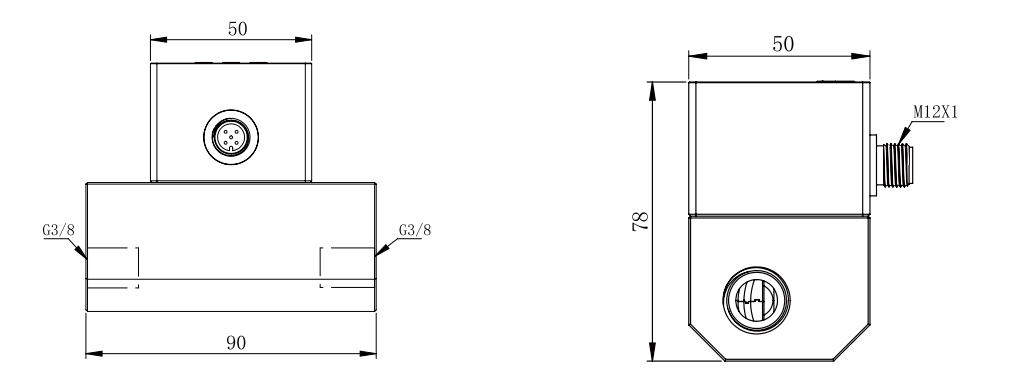

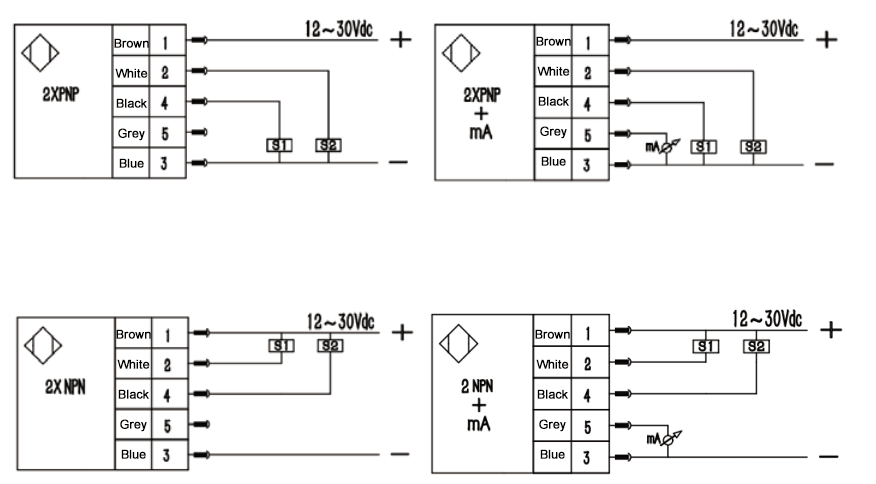

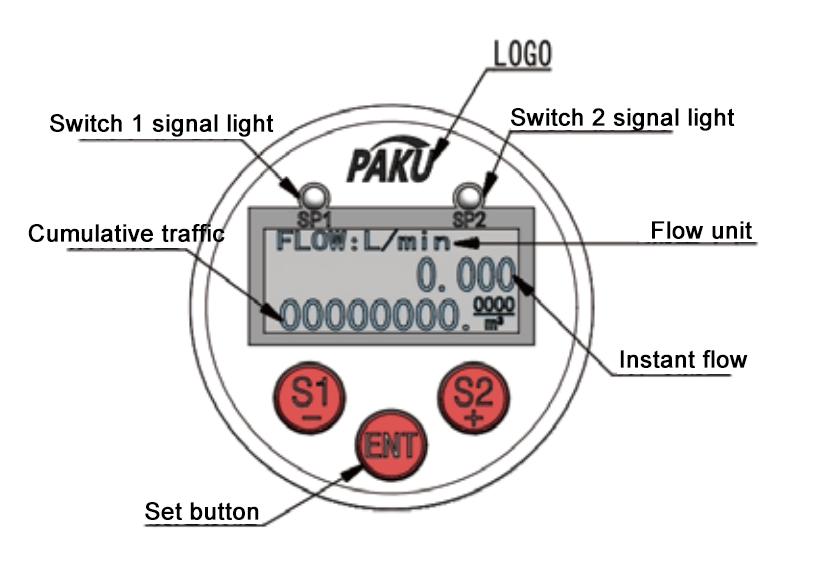

Technical Indicators Dimension Drawing Wiring Diagram Panel Schematic Selection Table
Flow rate range 0.15 ~6m/s
Pipe diameter range DN10-DN32
Supply Voltage DC 5 ~24V
Repeatability accuracy/linearity accuracy ± 1.5℅full scale
Temperature and pressure PP Body 12.5bar@25℃    5bar@90℃
PVDF Body 14.0bar@25℃ 1.7bar@100℃
PVDF Body 14.0bar@25℃    5bar@100℃
Overcurrent components Sensor body POM/ PVC /stainless steels
O-Ring FPM/EPDM
impellers PP
Bearings/Shafts High temperature oxidation picks ZrO2 (ceramic)

SN50D- A   A A Detailed Description
SN50D-               SN50D series impeller flow sensor
  A             Range: 0.5-10L/min G3/8 female thread
  B             Range: 1-60L/min G 1/2 female thread
    P           PNP Output
    N           NPN output
              2 switching + 4-20mA outputs
        A       Impeller material: PVDF
          A     Meter head material: PP
              Body material: PP
              Body material: stainless steel
              Body material: PP
              A Shaft: ZrO2
* The selection table is for parameter selection only, and will be shipped with the corresponding code of the parameter.
