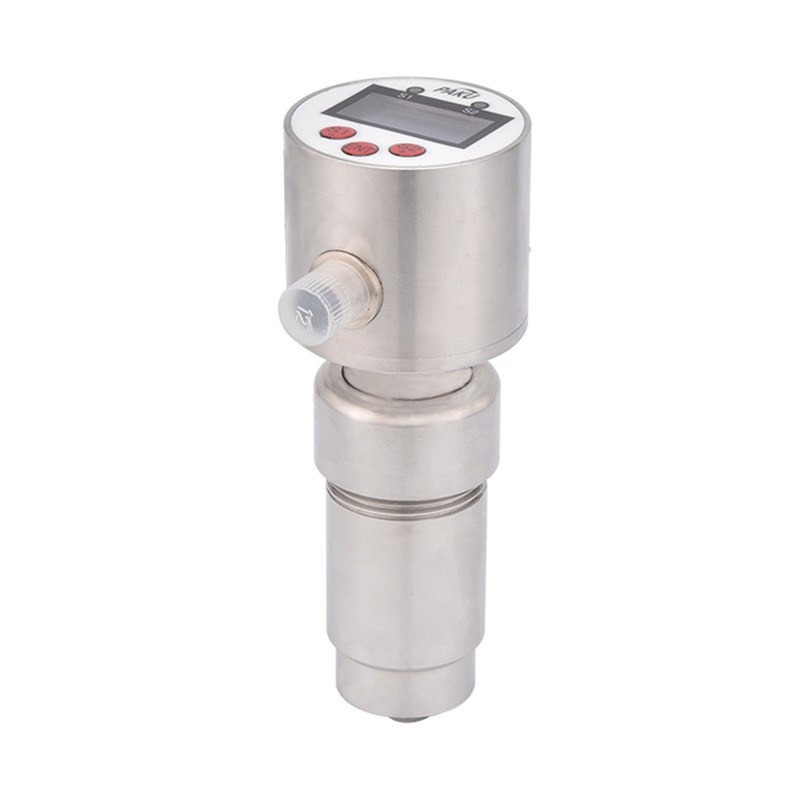

Impeller flow and temperature integrated sensor SN52D

Product introduction

The SN52D series impeller flow sensor is also an intelligent flow and temperature switch. It is a compact flow and temperature sensor featuring small size and easy setup. With a built-in intelligent circuit, it allows arbitrary setting of flow and temperature upper and lower alarm limits and enables remote monitoring of real-time flow and temperature conditions. All parameters can be set freely on-site. The impeller measures the medium's flow, and temperature is processed through the intelligent circuit for programmable output.

Hall-effect pulse output, open-collector PNP/NPN, strong drive capability
High chemical corrosion resistance
IP65 protection grade, suitable for harsh environments
Insertion type, easy to install
Good stability and strong anti-interference capability
High reliability, maintenance-free

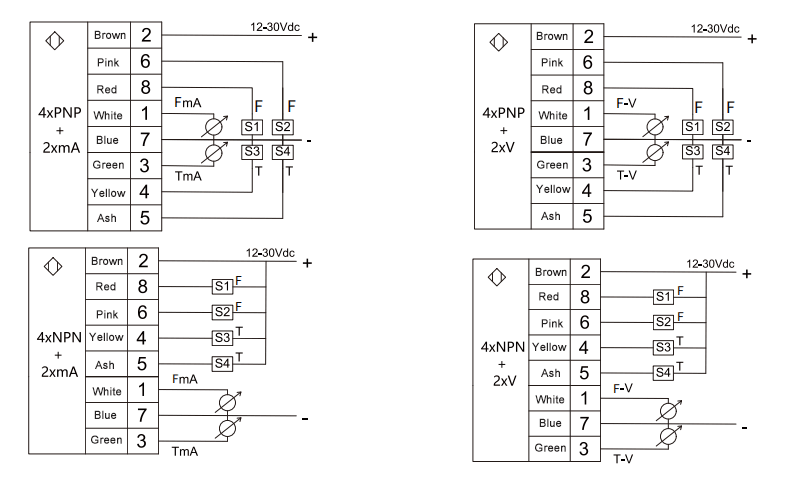

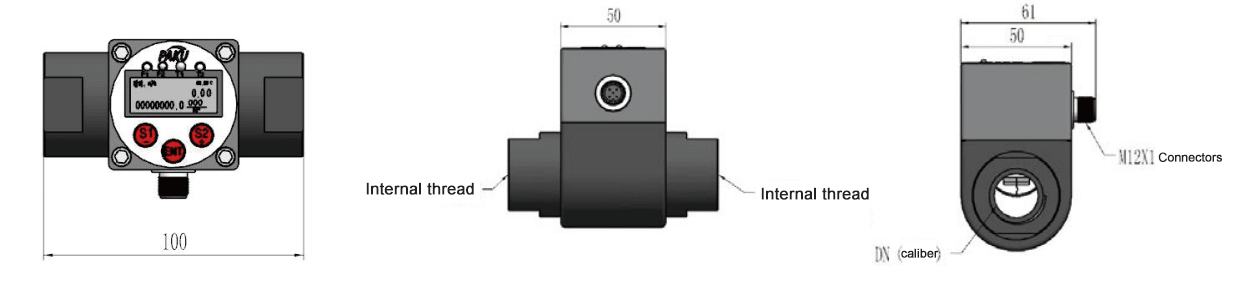

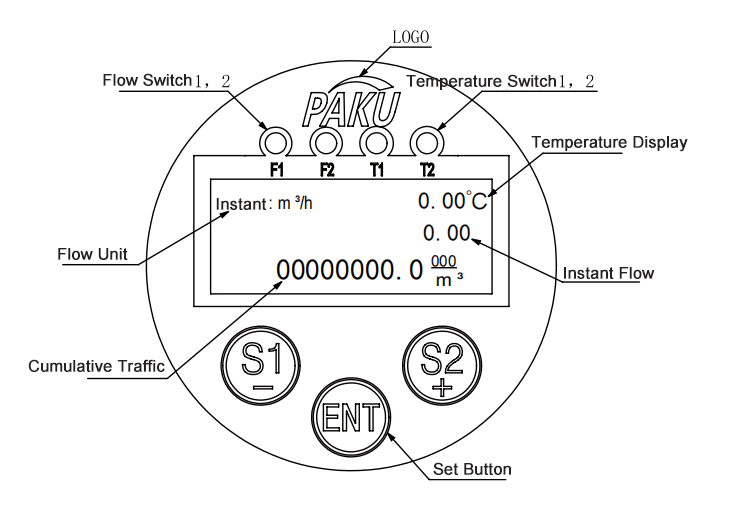

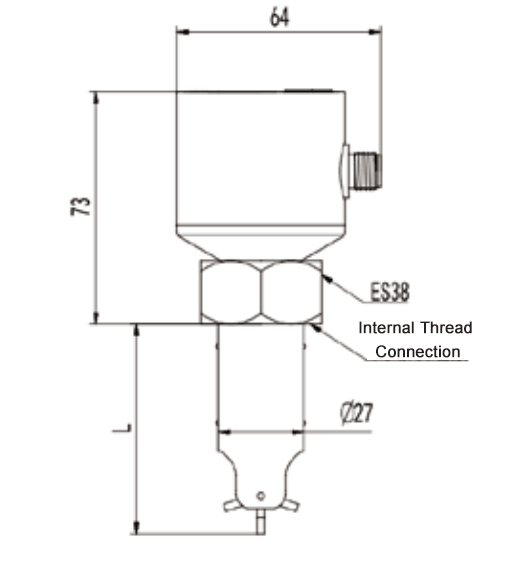

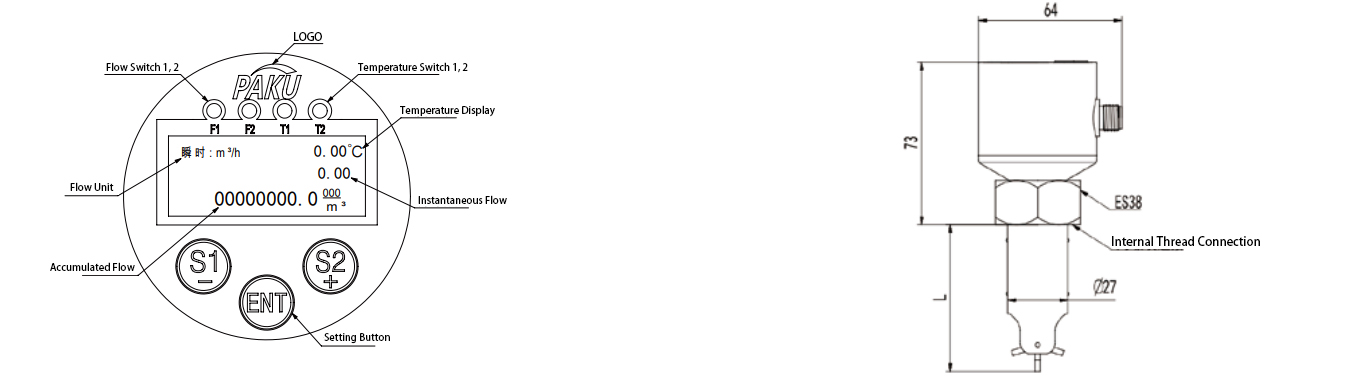

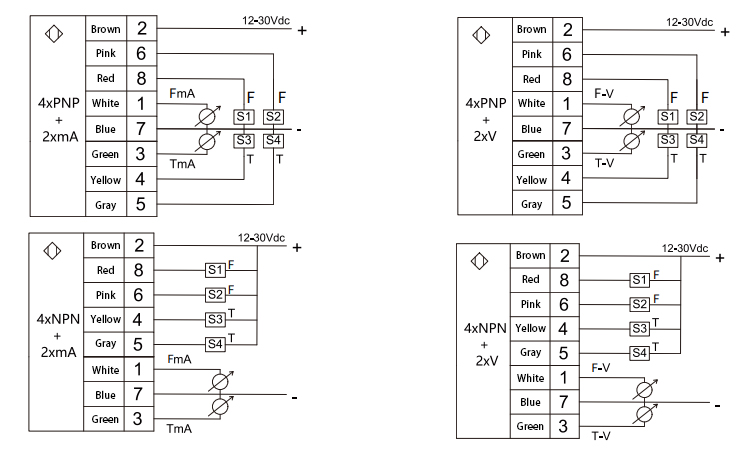

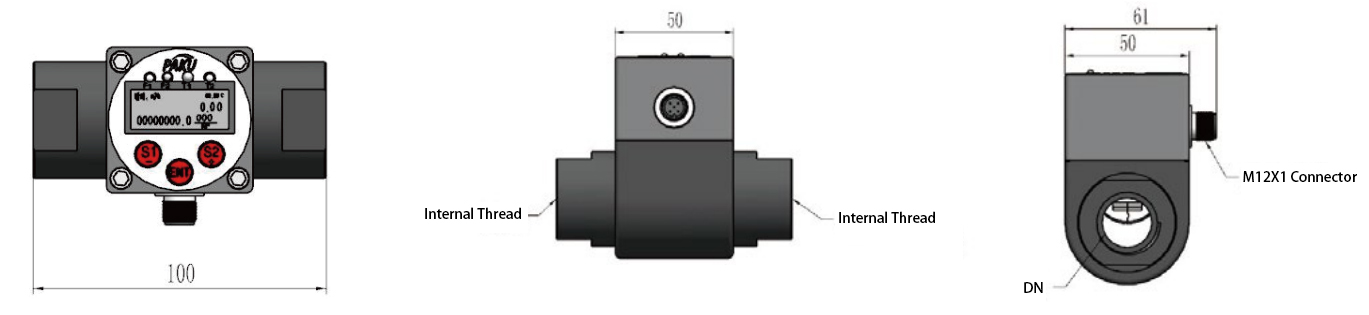

Wiring Diagram Panel Schematic Diagram Dimension Drawing Technical Indicators Selection Table

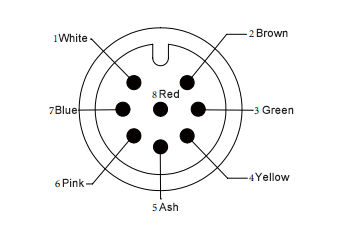

Needle Cable Signal
1 White

Flow mA

2 Brown 24V+
3 Green Temperature mA
4 Yellow

T1 Low Temperature Alarm

5 Grey

T2 High Temperature Alarm

6 Pink

F2 High Flow Alarm

7 Blue GND
8 Red

F1 Low Flow Alarm



Flow velocity range

0.15~6m/s

Pipe diameter range

DN10-DN32

Power supply voltage

DC 5~24V

Repeatability accuracy / Linearity accuracy

±1.5% F.S.



Temperature and Pressure



PP Body

12.5bar @ 25℃, 5bar @ 90℃

PVDF Body: 14.0bar @ 25℃, 1.7bar @ 100℃

PVDF Body

14.0bar @ 25℃, 5bar @ 100℃



Wetted Parts







Sensor Body

POM / Aluminum / Stainless Steel

O-ring

FPM/EPDM

Impeller

PVDF

Bearing / Shaft

High-Temperature Zirconia (ZrO₂) Ceramic

SN52D- A P 1 A A B 1 0-100 A

Detailed

SN52D-

SN52D Series Impeller Flow and Temperature Integrated Sensor

  A

Pipe Diameter: DN10

  B
C


Pipe Diameter: DN15

Pipe Diameter: DN20

  D

Pipe Diameter: DN25

  E
DN


Pipe Diameter: DN32

Specify pipe diameter when ordering

    P
N


PNP Output

NPN Output

      1

Internal Thread Connection

      2 A

External Thread Connection

Impeller Material: PVDF

          A

Shaft: ZrO₂

            A
B


Display Material: POM

Display Material: Aluminum

            C 1

Display Material: Stainless Steel

Body Material: POM

              2

Body Material: PVC

              3
4


Body Material: Aluminum

Body Material: Stainless Steel

                ...

Customized Temperature Range: 0–100℃

                  A
B


2 Flow Switch Outputs

2 Temperature Switch Outputs + 1 Temperature 4–20mA Output

                  C
D


2 Flow Switch Outputs + 1 Flow 4–20mA Output

1 Temperature 4–20mA Output

                  E

1 Flow 4–20mA Output

                  F
G


2 Analog 4–20mA Outputs (Temperature, Flow)

4 Switch Outputs (Temperature, Flow)

                  H

4 Switch Outputs (Temperature, Flow) + 2 Analog Outputs

                    1
2

Inline Type (Internal/External Thread Optional)

Insertion Type (Minimum Welded Pipe Size DN10)

*Selection table is for parameter configuration only. Factory production based on parameter-to-code mapping.
