Explosion-proof electronic turbine flow sensor SN-51E

Product introduction

SN-51E series electronic turbine flow sensor and an intelligent flow switch, is a compact flow sensor, with a small size, easy to set up and other advantages, built-in intelligent circuitry, can be set arbitrarily flow upper and lower limits of the alarm value can be remotely monitored the real-time flow conditions, the full range of parameters on-site any setup, and its turbine measurement medium through the flow through the sensor intelligent circuitry to process the arbitrary programming.
-Protection level: 1P67
Explosion-proof marking bit ExedIICT6
-Applicable to the measurement of low-viscosity media, such as water, diesel, petrol.
-Increase the role of upper and lower limit alarm on the basis of the traditional turbine flowmeter.

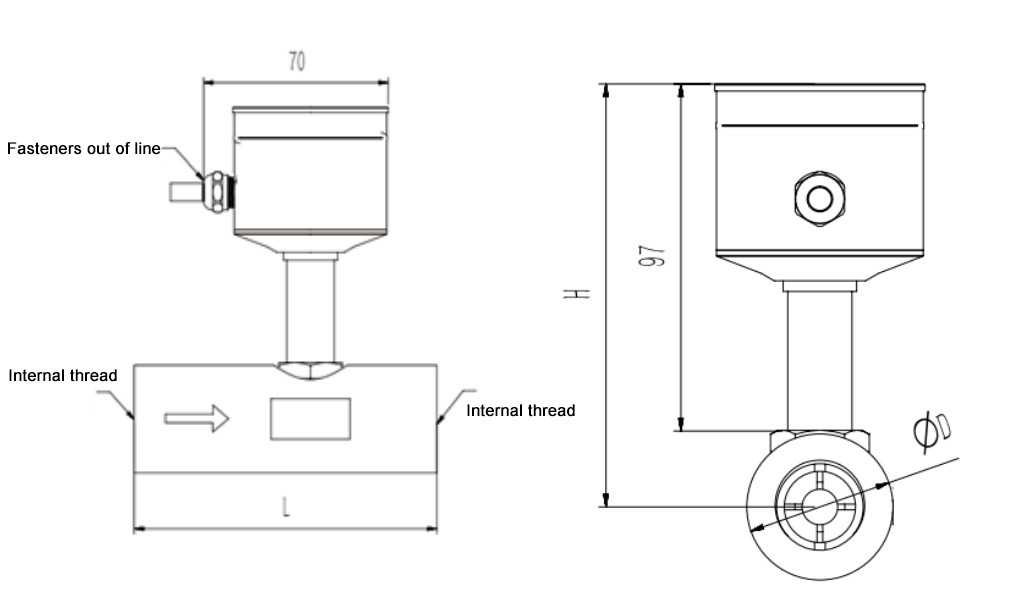

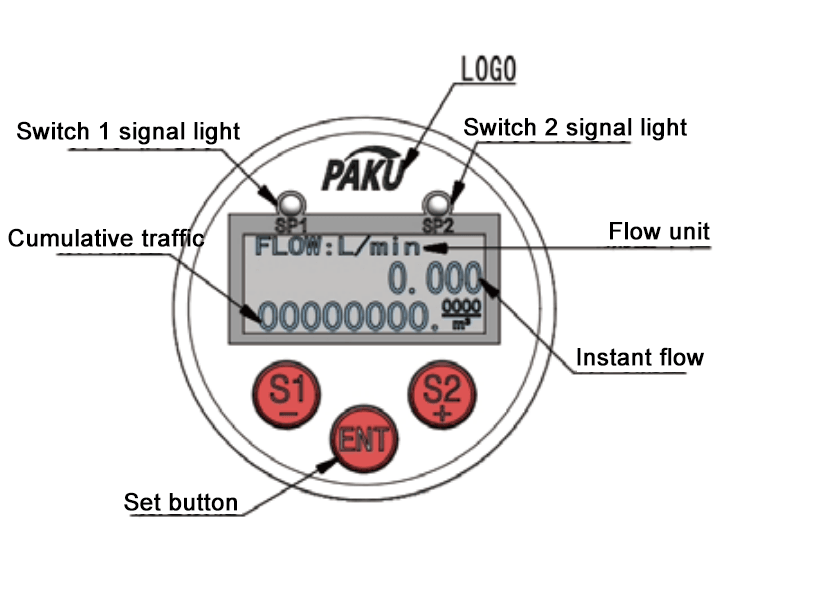

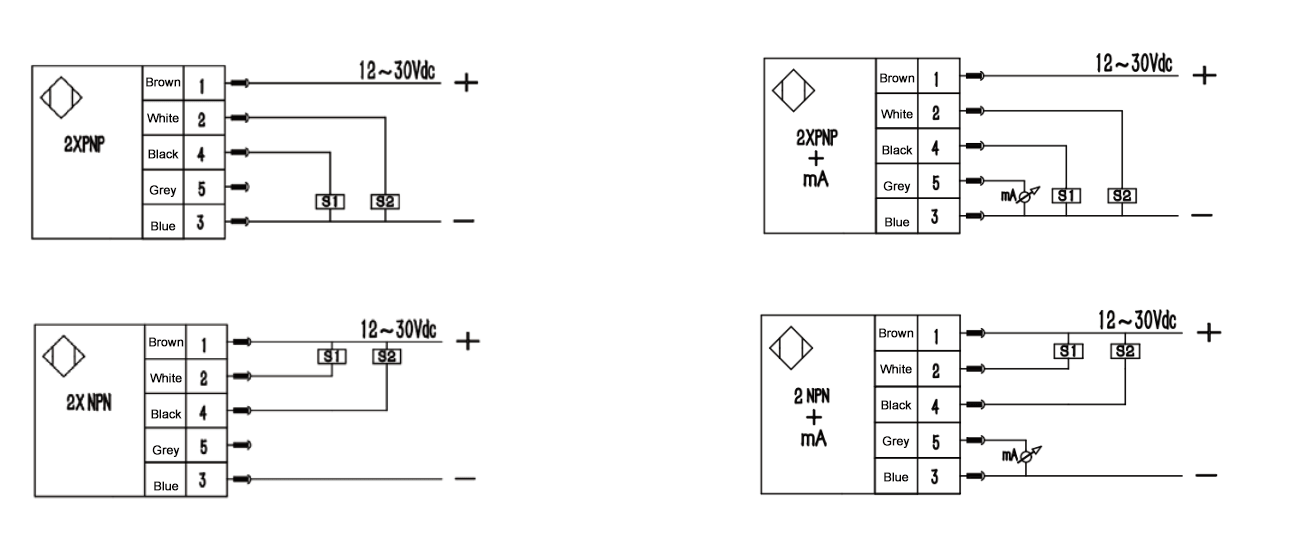

Wiring Diagram Dimension Drawing Panel Diagram Dimensions Figure 1 (Threaded Connection Type) Dimension Drawing 2 (Flange Connection Type) Flow Range Selection Table

Instrument diameter
DN( mm)
External thread
L
(mm)
Internal thread
L
( mm)
H( mm) G
(External thread)
G
(Internal thread)
Pulse type Explosion-proof pulse type 4-20mA  Output type Smart display
225  80  106  118  106  210  G1/2 G1/4
225  80  107  119  107  210  G1/2 G1/4
10  345  80  109  121  109  210  G1/2 G3/8
12  65  80  110  122  110  212  G3/4 G1/2
15  75  110  112  124  112  215  G1 G1/2
20  85  115  115  127  115  220  G1 G3/4
25  100  140  117  129  117  225  G1-1/4 G1
32  120  168  120  132  120  245  G1-1/2 G1-1/4
40  140  180  124  136  124  250  G2 G1-1/2
50  150  200  129  141  129  255  G2-1/2 G2
Note: The above DN4-DN10 flow sensor includes the factory-standard straight pipe section size, and the DN15-DN50 diameter flow sensor does not include the straight pipe section size
Instrument diameter
(mm)
L
(mm)
D
(mm)
K
(mm)
H  ( mm) d
(mm)
n
(Number of holes)
Standard
Pressure resistance
Pulse type Explosion-proof pulse type 4-20mA
Output type
Smart display
15  75  95  65  175  180  180  245  14  1.6
MPa
20  85  105  75  185  190  190  255  14
25  100  115  85  200  195  195  260  14
32  120  140  100  210  215  215  275  18
40  140  150  110  195  220  220  285  18
50  150  165  125  230  235  235  295  18
65  175  185  145  255  260  260  325  18
80  200  200  160  260  265  265  330  18
100  220  220  180  285  285  285  350  18
125  250  250  210  310  315  315  380  18
150  300  285  240  345  345  345  410  22
200  360  340  295  395  400  400  465  22  12
Nominal diameter
DN( mm )
Flow range( m³/H ) Nominal pressure
PN( MPa )
Maximum pressure loss
( MPa )
Lower limit Upper limit Lower limit Upper limit Lower limit Upper limit
        0.03  0.16  Thread pressure resistance: 6.3
Flange pressure resistance: 1.6
Please indicate the special pressure resistance
0.15
        0.04  0.25  0.12
        0.1  0.6  0.08
10          0.2  1.2  0.05
12          0.12  2.4  0.05
15      0.6  0.6  0.035
20          0.8
25      1.6  10  10
32          1.5  15
40  20  20  20  0.025
50  40  40  40
65          80
80  16  100  16  100  10  100
100  25  160  25  160  20  222
125          25  250
150  60  400  50  300  40  400
200      100  600  80  800
250      160  1000  120  1200
300      260  1600  180  1800
SN-51E 025  D P K Q Detailed description
SN-51E               SN51E Series Electronic Turbine Flow Sensor
  025              Calibre options, 025 represents DN25 pipe (can be selected according to the dimensional drawings of the pipe, special pipe diameter, please consult the sales engineer)
    D           Power supply: 24V
      P         PNP output
      N         NPN output
              Two switching
              Two switching + analogue 4-20mA outputs
              Two switching + pulse output
          K     Female thread mounting
          H     External thread mounting
          D     Flange connection
          G     Sanitary clamp connection
              Pressure: 16 bar
              Pressure resistant: 25bar
              Pressure resistant: 63 bar
              Pressure resistant: 250 bar (diameter < DN50)
              Pressure resistance: 400 bar (diameter < DN50)
            P   Customised pressure resistance, e.g. 400 bar: P400
              Q Glen outlets
* When ordering, please specify the direction of media flow, type of media, pipe diameter and desired measurement interval value. We can help you to complete the accurate verification at the factory.
* If the medium is viscous, please specify the viscosity, temperature and type of medium, as well as the flow range.
* The selection table is for parameter selection only, and the corresponding code of the parameter will be shipped from the factory.
