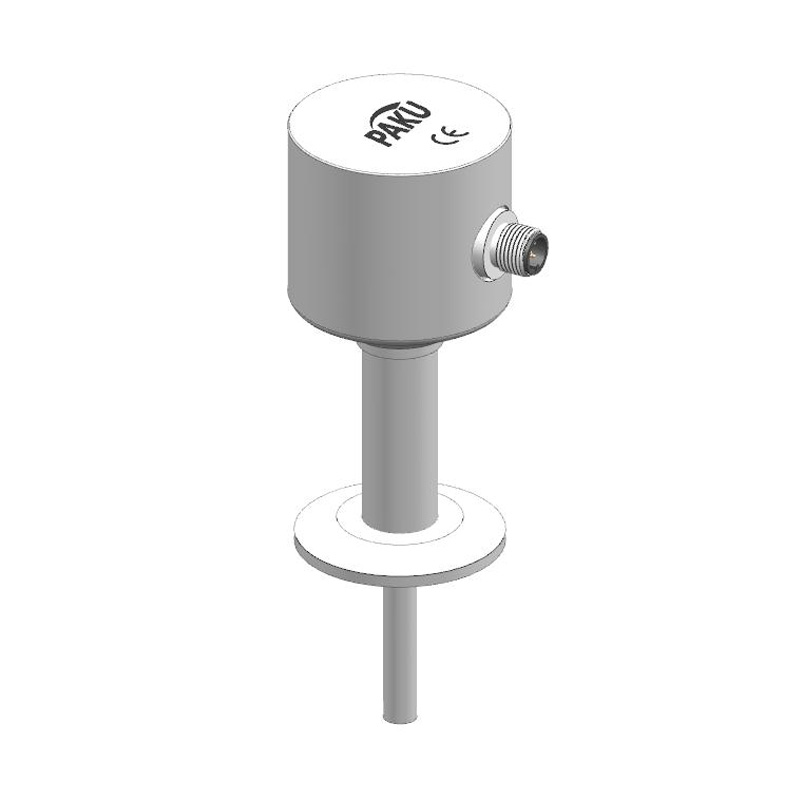

(Sanitary) Integrated temperature transmitter-T451

Product introduction

T451 is specialised in food hygiene industry temperature transmitter, using a high precision PT100 RTD for temperature measurement, the signal is processed by the rear processing circuit and converted into a standard electrical signal output. Shell design of all stainless steel, so that it will not pollute the measurement medium and the environment, special food hygiene chuck connection, can ensure easy cleaning and disinfection without leaving dead ends. Optional HART output, according to the user can choose to install the display.

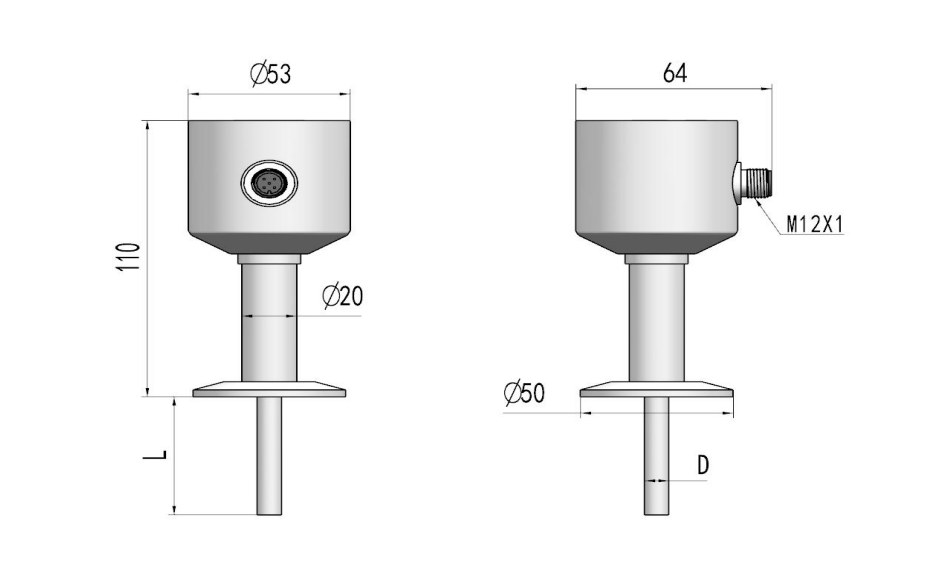

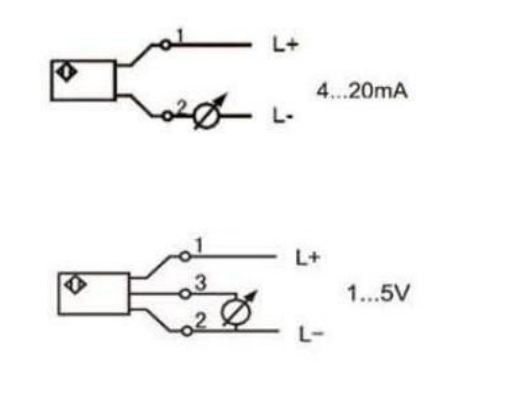

Product Application Technical Specification Wiring Diagram Dimnsion Figure Selection Table

- food industry
- pharmacy industry
- commercial unit
- water treatment
- Hydraulic lubrication

- Measuring range: -50℃ ... 200 ℃
- Linear degree: < 0.1%
- Accuracy: ±0.2K +0.2% full scale
- Resolution: 0.1K
- Pressure: Φ6 type: probe 400bar, Φ8 type: probe 100bar
- Temperature effect: 0.1K/10K
- Response time: 2.3 seconds
- Working voltage: 12... 30Vdc
- Electrical protection: anti-pole, overload protection
- Sensor: PT100
- Ambient temperature: -25... 80 ℃
- Protection grade: IP65
- Shell material: 304 stainless steel
- Contact part material: 304 stainless steel
- Electrical connection: Hersman /M12*1 connector

T451- A L K5 H A 4 D1 A specification
T451-                 T451    series    (sanitary    type)     integrated
temperature transmitter
  A               Range - 50... 0 ℃
  B               Range - 50... 50 ℃
  C               Range 0... 50 ℃
  D               Range 0... 100 ℃
  E               Range 0... 120 ℃
  F               Range 0... 150 ℃
  G               Range 0... 200 ℃
  H...               Customize the range, e.g. -20... 100 ℃ ,
Selection: H - 20.. 100
    L             The length of the neck tube is 50mm
    K             Threaded connection with movable sleeve
      K5           Sanitary chuck 50.5mm
      G2           Threaded interface G1/2
      G4           Threaded interface G1/4
      M2           Threaded interface M20*1.5
                  Custom thread
        H         RA
          A       Probe length L 25mm (without thread)
          B       Probe length L 50mm (without thread)
          C       Probe length L is 75mm (without thread)
          D       Probe length L is 100mm (without thread)
          L...       Custom probe length L= mm (without thread)
                The analog range output is: 4... 20mA
            41      The  armoured  analog  range  output  is:  4...
                The analog range output is :0... 10V
                The analog range output is :1... 5V
            H     HART protocol (customizable)
            F     LCD display (customizable)
                  D1   The probe diameter is Ф6
                  D2   The probe diameter is Ф8
                  D12   Custom probe, for example diameter Φ 12
              K   Threaded   connection   with   movable   sleeve
                A Connector type M12*1 (standard with 2 meters
                B Direct line
* The selection table is only available for parameter selection, and the corresponding code is delivered.
