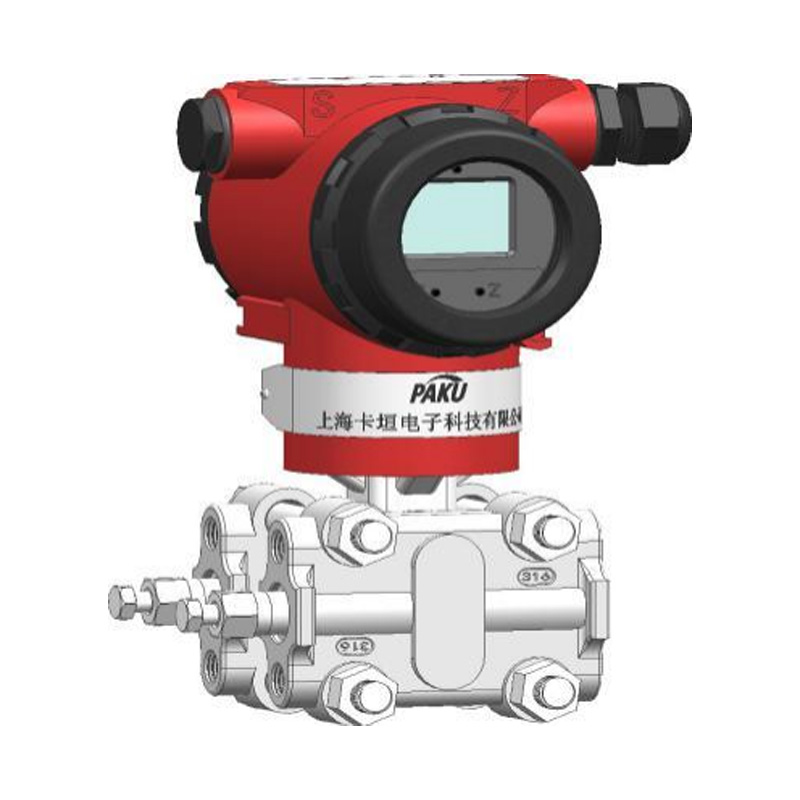

Intelligent Pressure Transmitter-PN52

Product introduction

PN52 intelligent pressure transmitter is a kind of field intelligent pressure instrument with HART communication function based on micro-displacement capacitance sensor technology. Its key raw materials and parts are imported, advanced design principle, complete product specifications, easy to install and use. It can be queried, configured or tuned in the control room or on the transmitter site through handheld communicators or other hosts using HART protocol. Pressure, flow and liquid level can be measured according to the way of use.

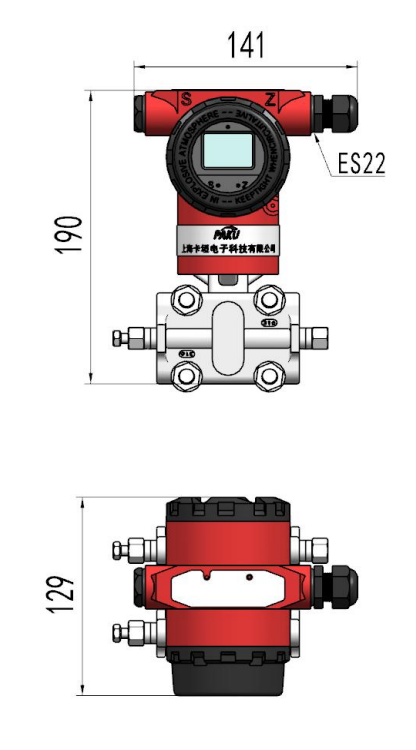

Main Features Dimension Figure Technical Specification Selection Table

- High precision and good stability
- Suitable for differential pressure, gauge pressure, absolute pressure and other inputs
- Fixed element, plug - in printed circuit board
- Small, light weight, strong vibration resistance
- Range, zero external continuous adjustable
- Adjustable damping, good unidirectional overload protection
- No mechanical moving parts, less maintenance work
- Unified structure of the whole series, strong interchangeability of parts
- Diaphragm material for contact medium is optional
- Diaphragm optional 316L, TAN, HAS-C, MONEL and other corrosion resistant materials
- Intelligent HART Fieldbus Protocol

Use object A liquid, gas, or vapor
measuring range gage pressure 0-0.1 kpa to 0-42000
kpa
differential pressure 0-0.1 kpa to 0-7000 kpa
absolute pressure 0 to 6 kpa to 0-7000 kpa
output 4-20mA DC, intelligent HART fieldbus protocol
signal output
power supply 24VDC, can work at 12VDC (with LCD display
minimum 15VDC),
temperature
range
-40℃ ~+85℃
humidity range 5~95%(relative humidity)
instruction sheet SVC-E
Combined error Adjust the range of ±0.1%, ±0.2%
stability Do not exceed transmitter accuracy within one
year
enclosure
protection class
IP65
weight 3.9kg(excluding options, except for flanged
transmitters)
spectrum Description
PN52 Intelligent Pressure Transmitter
                    Pressure
Datum
GP 0 ~ 0.6 kpa to 40000 kpa pressure
AP Certainly press 0 ~ 4 kpa to 7000 kpa
DP The differential 0 ~ 0.6 kpa to 7000 kpa
DR Micro differential pressure 0 ~ 0.1 kpa ~ 1.6 kpa
measuring range Applicable to 0~ 0.1kPa - 1.6kPa differential pressure
0~0.6kpa-6kpa
0~4kpa-40kpa
0~20kpa-200kpa
0~70kpa-700kpa
0~160kpa-1000kpa
0~200kpa-2000kpa
0~400kpa-2500kpa
10  0~700kpa-7000kpa
11  0~2000kpa-20000kpa
12  0~4200kpa-40000kpa
  Special range
Output signal type E 4~20mA standard current signal output
S Intelligent HART fieldbus protocol signal output
structural material code flanged joint Vent/drain valve isolation
diaphragm
Pump the liquid
22  316 stainless steel 316 stainless steel 316 stainless steel silicone oil
23  316 stainless steel 316 stainless steel Hastelloy
24  316 stainless steel 316 stainless steel monel
25  316 stainless steel 316 stainless steel tantalum
33  Hastelloy Hastelloy Hastelloy
Maximum working pressure (MPa) A- 1MPa
B- 4MPa
C- 10MPa
D- 40MPa
option M3 Digital LCD display header
B1 Pipe mounting bending support
B2 Plate mounted bending support
B3 Pipe mounted flat bracket
C1 1/4NPT
C2 T-thread joint M20x1.5
C3 Weld 14 pressure tubes at the back of 1/2NPT pressure
transition joint
  A standard form
B flame-proof type
C intrinsic safety type
  * When ordering, please indicate the factory range. If not, please leave the factory according to the highest rated range. Structural material 22 is the standard configuration
