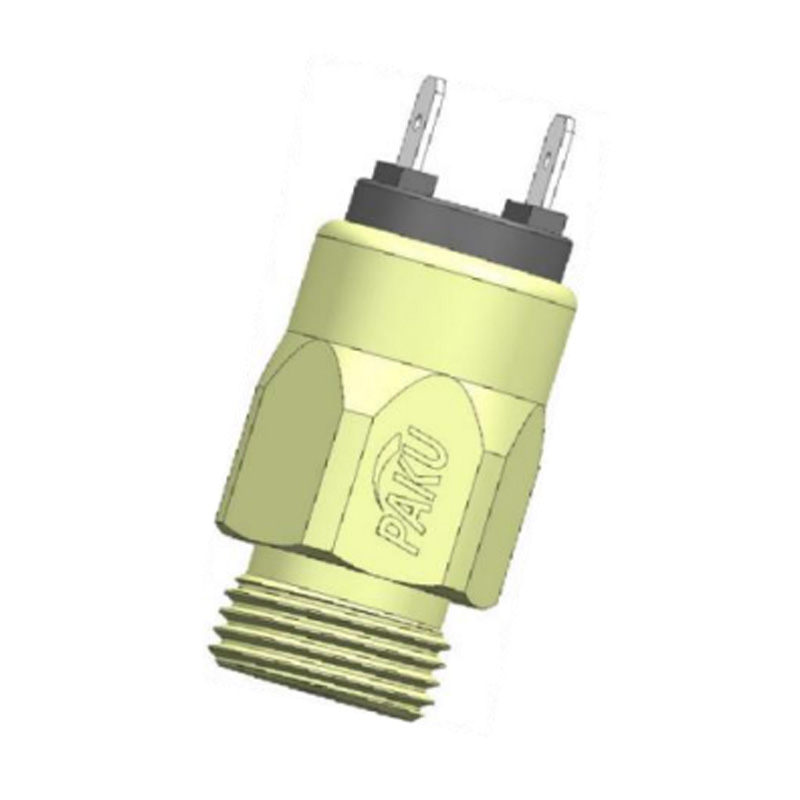

Product 3D Image
Get coupons
Product introduction

The built-in piston is connected with the precision spring. When the pressure changes, the spring expansion changes accordingly. When the pressure reaches the set value, the preset mechanical junction will be triggered and the switch signal will be sent out.
Designed for OEM applications, these compact pressure switches are ideal for engineering machinery, Marine valve remote control systems, and other applications that require high pressure resistance. 0.3 -- 100BAR (optional set point: 200BAR for piston type) Exceptional volumetric pressure range ratio can be set factory or field adjusted.

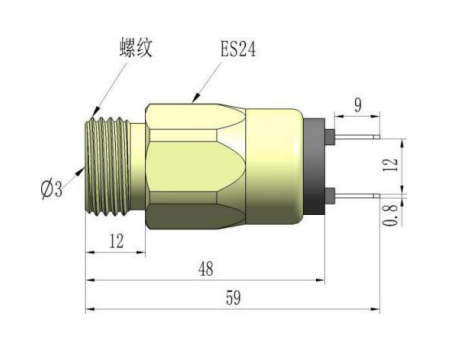

Technical Specification Dimension Figure Optional Accesseies Selection Table

- Storage temperature :-45... 130°C
- Working temperature: -45... 130°C
- Switch: 100VA
- Repetition performance: ±3%
- Pressure connection: galvanized steel/stainless steel
- Electrical connection: 6.3*0.8 insert
- Service life: 1 million times
- Maximum pressure: 30MPa for diaphragm type
- Piston type pressure 60MPa

P11- A N S G1 H N B specification
P11-               P11 series mechanical adjustable
pressure switch
  A             Measuring range: 0.03-- 0.3Mpa
  B             Measuring range: 0.06--0.6MPa
  C             Measuring range: 0.1-0.4MPa
  D             Measuring range: 0.1-1.3MPa
  E             Measuring range: 0.4--2.8MPa
  F             Measuring range: 0.5--1.5MPa
  G             Measuring range: 0.6--6.0MPa
  H             Measuring range: 1.6-4.0MPa
  I             Measuring range: 4.1--7.0MPa
  J             Measuring range: 5.0--15.0MPa
  K             Measuring range: 7.1--10.0MPa
    N           Alarm point setting, such as 3MPa
alarm,
      S         Galvanized steel base
      X         stainless steel
        G1       Interface thread G1/8
        G2       Interface thread G1/4
        G3       Interface thread G1/2
        N13       Interface thread NPT1/4
        N2       Interface thread NPT1/2
        M1       Interface thread M10*1
        M2       Interface thread M12*1.5
        M3       Interface thread M14*1.5
        M4       Interface thread M20*1.5
                Custom thread
          H     external thread
          K     internal thread
            N   Normally open
            F   Normally closed

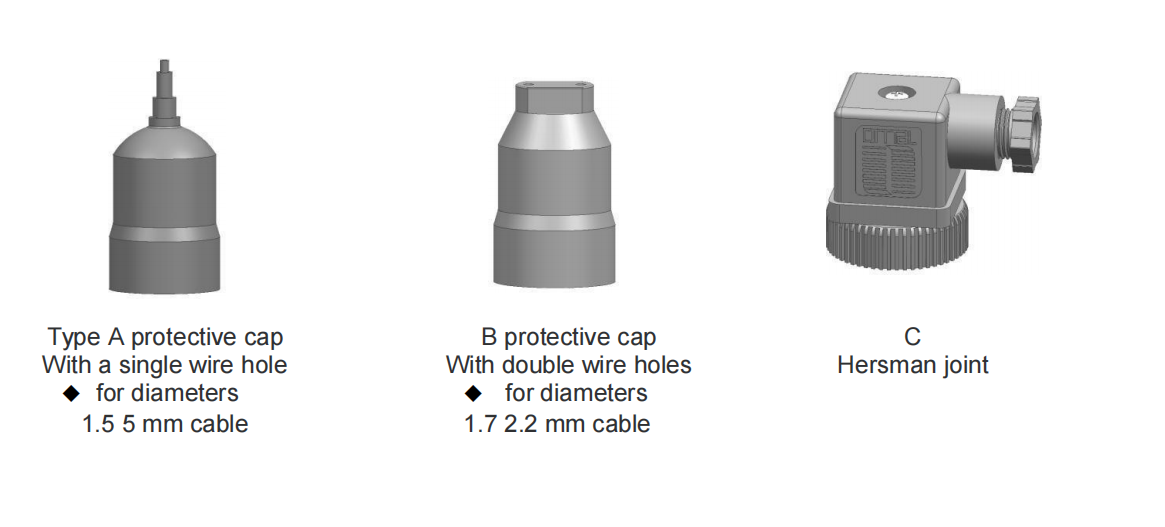

              A Type A protective cap
              B B protective cap
              C Type C Hersman
              D DE chi plug-in
* The selection table is only available for parameter selection, and the corresponding code is delivered.
