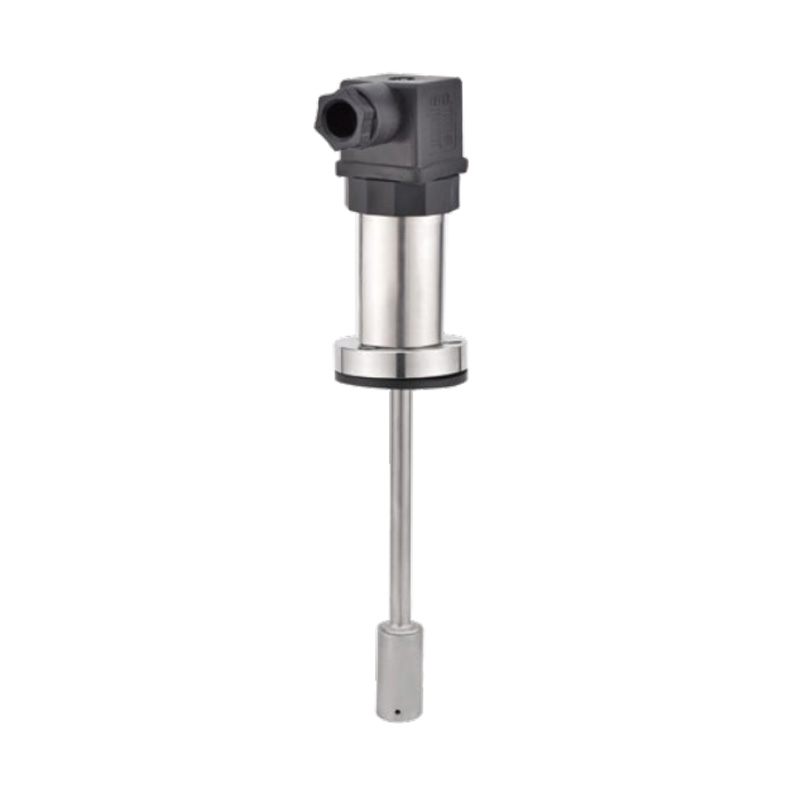

Static Pressure Level Transmitter-LF70B

Product introduction

LF70B series liquid level transmitter, the use of imported sensors pressure-sensitive components, with computer laser resistance for temperature compensation, the use of integrated junction box design. With special terminals and digital display, easy to install, calibrate and maintain. This series of products are suitable for petroleum, water conservancy, chemical industry, metallurgy, electric power, light industry, scientific research, environmental protection and other enterprises and institutions, to achieve the measurement of the height of the liquid level and suitable for a variety of occasions in all-weather environments and a variety of corrosive fluids.
A variety of ranges to choose from; digital pressure display; zero, range debugging is convenient; reverse polarity protection and current limiting protection; anti-lightning, shock resistance; intrinsically safe explosion-proof; small size, beautiful appearance, cost-effective; high-precision, high stability, high reliability.

Technical Parameters Selection Table

- Output signal: 4~20mA
- Power supply voltage: 18~36VDC
- Allowable overload: 150% of the standard range
- Operating temperature: -40℃~80℃ (special order)
- Long-term stability: ≤±0.2%FS/year
- Protection class: IP67
- Seal Material: Nitrile Rubber Fluorocarbon Rubber
- Shell material: moulded cast aluminium

LF70B- A L A Details
LF70B-           LF70B Series Hydrostatic Level Transmitter
  A         Threaded Model
  B         Chuck Model
    L       Measuring Range: L=mm (Unit)
          Analogue Output: 4-20mA
          Analogue Output: 0-5V
          Analogue Output: 0-10V
        A   Connection Material: 304 Stainless Steel
        B   Connection Material: 304 Stainless Steel
          Hirschmann Connector
          Direct Wire Outlet
*The selection table is for parameter selection only, and the corresponding code of the parameter will be shipped from the factory.
