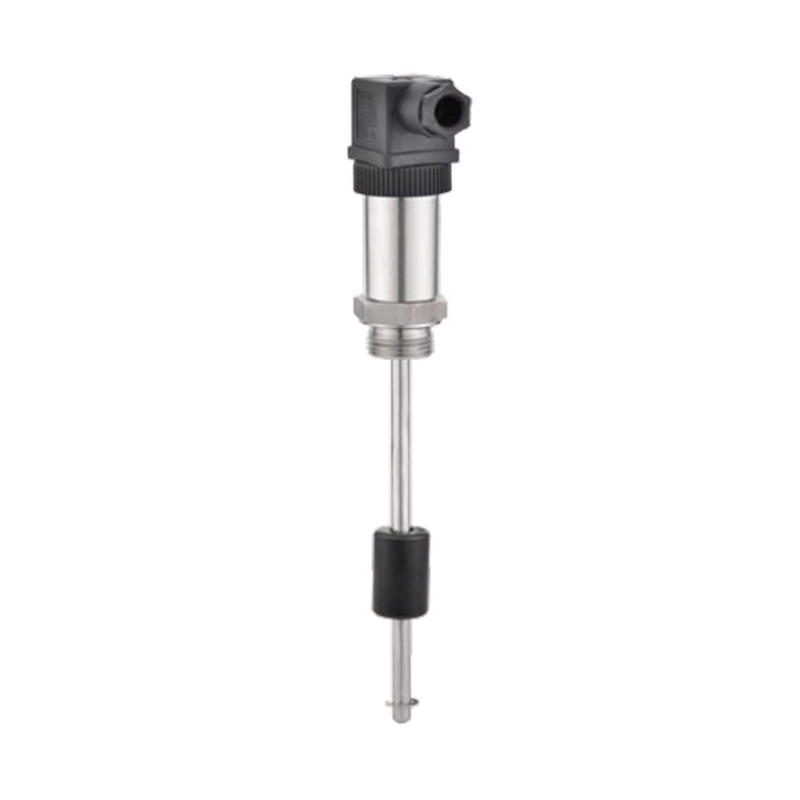

Product 3D Image Get couponsThe internal circuitry converts the value into a linear analogue output; in addition, a magnetic inductive sensor measures the level and the signal is processed by the back-end processing circuitry and converted into a standard industrial electrical signal for output.
-Measuring range: user-defined
-Measuring medium: corrosive compatible with stainless steel 304 liquid
-Media density: ≥0.7g/cm³
-Supply voltage: 12.... .30Vdc
-No-load current consumption: maximum 30mA, 24Vdc when power supply
-Response time <10ms
-Resolution: 10mm
- Current type analogue output: ≤±0.5% of range
-Output type: 4.... .20mA
-Load RA:≤0.5KOhm
-Linearity: ≤ 1.5% range
-Materials: Meter head housing: engineering plastics
Housing: stainless steel 304
Medium contacting part: stainless steel 304
Float: 304 stainless steel or NBR material (can be customised)
LF70C- | A | L | 4 | A | 1 | Details | ||||||||
LF70C - | LF70C Series Level Transmitter | |||||||||||||
A | G1 Male Thread | |||||||||||||
B | Flange Connection | |||||||||||||
C | Sanitary Chuck Connection Measuring Range: L=mm (Unit) |
|||||||||||||
A | Analogue Output: 4-20mA | |||||||||||||
B | Analogue Output: 0-5V | |||||||||||||
C | Analogue Output: 0-10V | |||||||||||||
B | Float Material: NBR | |||||||||||||
X | Float Material: 304 Stainless Steel | |||||||||||||
S | Special Order (Corrosion Resistant) | |||||||||||||
1 | Hirschmann Connector | |||||||||||||
2 | Direct Line Out | |||||||||||||
*Selection table for parameter selection only, to parameter corresponding to the code factory |
