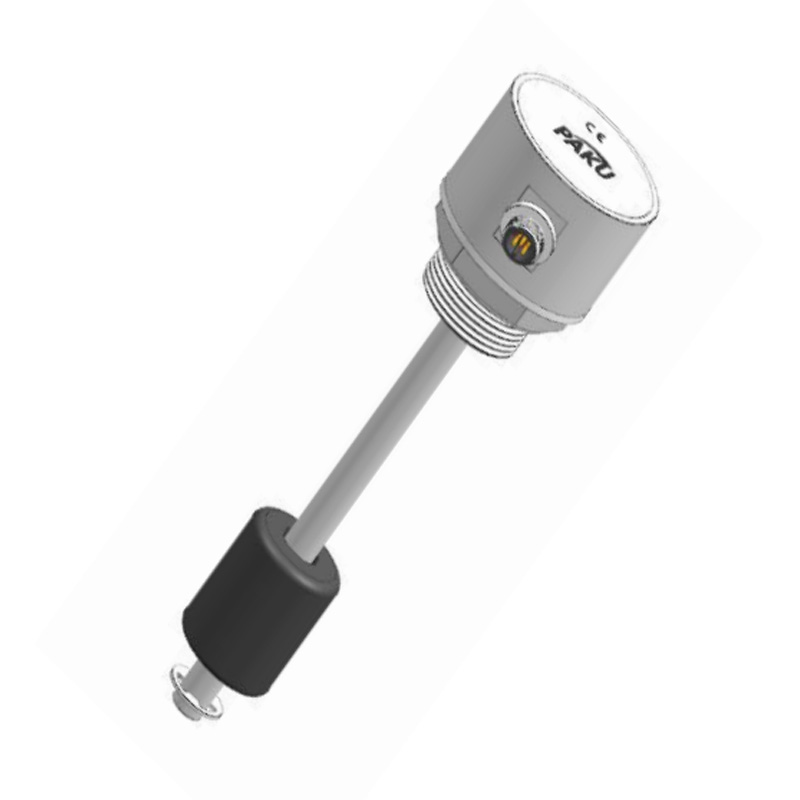

Product 3D Image
Get coupons
Product introduction

LF500 series integrated temperature liquid level sensor includes a PT100 probe, PT100 resistance changes with temperature, LF500 internal circuit to convert its value into linear analog output; In addition, magnetic induction technology sensor for liquid level measurement, the signal by the rear processing circuit after processing into a standard industrial electrical signal output. Realize the temperature, liquid level double analog output.

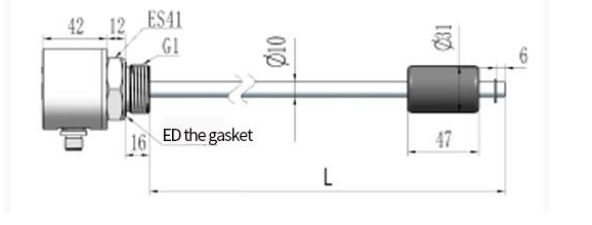

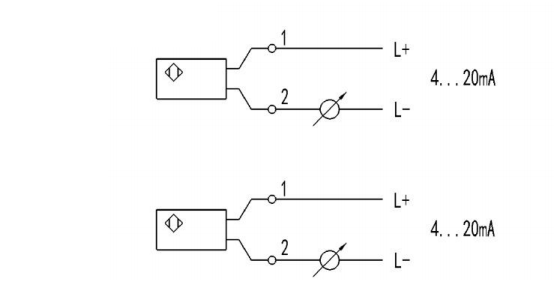

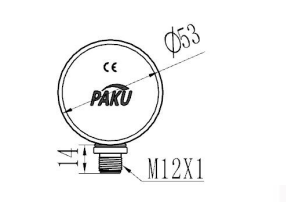

Technical Specification Dimension Figure Wiring Diagram Selection Table

-Measurement range: user-defined
-Measurement medium: corrosive compatible with 304 stainless steel liquid
-Pressure: 50bar
-Medium density: ≥0.7g/cm³
-Power supply voltage: 12... 30Vdc
-No-load current consumption: maximum 30mA, 24VDC power supply
-Current type analog output: ≤ ±0.5% range
-Output type: 4... Can be set to 20 ma
-load RA: 0.5 KOhm or less
-Linearity: ≤ 1.5% range
-Wiring protection: reverse phase, overload, short circuit protection
-Accuracy: ≤ ±0.5% range
-Stability (annual drift) : ≤ ±0.3% range
-temperature:Temperature measurement range: 0... 100℃ (special
range can be customized)
Ambient temperature: -20... 80 ℃
-materials:Nod case: 304 stainless steel+
Shell: 304 stainless steel
Medium contact part: stainless steel 304
Float ball: 304 stainless steel or NBR material (can be customized)
-Protection grade: IP67
-Outgoing way: M12X1 connector

LF500-             specification
LF500-             LF500 Series Integrated Temperature Level Sensor
            1 temperature analog quantity 4-20mA
            1 liquid level simulation volume 4-20mA
            1 temperature simulation quantity 4-20mA+1 liquid level
    A         Range 0... 100 ℃
    B         Range 0... 150℃ (optional high temperature float ball)
    C..         Customize the range, e.g. -0... 120℃ , selection: C0... 120
      A       Thread connection with external thread
      B       flanged joint
      C       Sanitary chuck connection
      D       Interface thread: G1
      ...       Custom thread
        L     Range of liquid level: L= mm (unit)
          S   M12*1 connector (standard with 2 meters wire)
            B Float material: NBR
            X Float material: 304 stainless steel
            G Float material: high temperature resistant
            S Special customization (corrosion resistance)
* The selection table is only available for parameter selection, and the corresponding code is delivered.
