Anti-corrosion electronic liquid level switch sensor-LF601

Product introduction

LF601 series uses magnetic induction technology sensor for liquid level measurement, the signal is processed by the rear processing circuit and converted into standard industrial electrical signal output and display. Under the action of liquid buoyancy, the floating ball moves up and down along the guide bar, continuously triggering the magnetic switch in the guide bar, which controls the number of resistors turned on or off, converting the liquid level change into resistance change, and the resistance value is converted into a standard electrical signal output and displayed after processing by the rear circuit.
-Full metal housing design
-Liquid crystal digital display enables the series to be used in a variety of industrial applications.
-Two-button design and user-friendly menu make the product more convenient to use.
-Multiple connection methods can fully meet the specific installation requirements.
-The 330° rotatable display head ensures the best viewing angle in different installation methods.

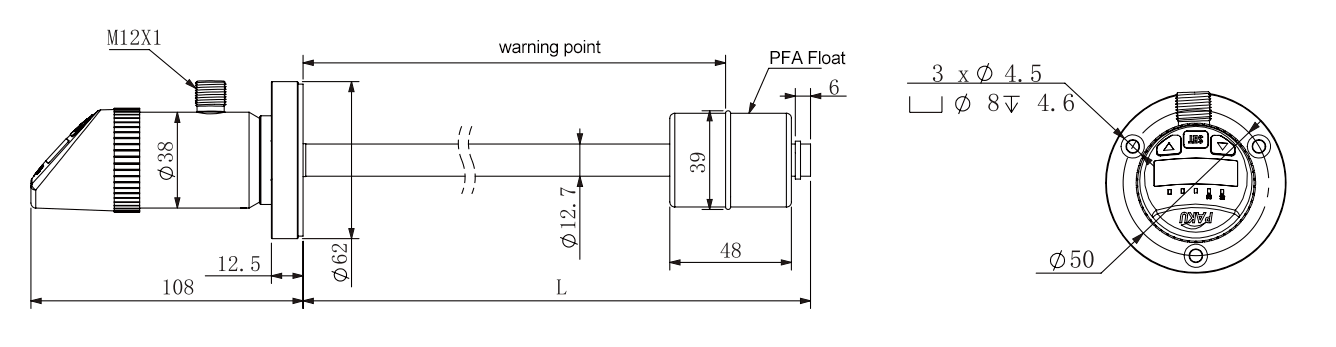

Technical Parameter Product Applications Wiring Diagram Dimension Drawing Selection Table

-Gama de medición: definida por el usuario
-Medio de medida: compatible con corrosivos
-Resistencia a la presión:50bar
-Densidad media:>0,7g/cm².
-Tensión de alimentación:12.... .300Vcc
-Consumo de corriente en vacío: 30mA máx. con alimentación de 24Vdc
-Salida conmutada: Tipo de salida: PNP/NPN conmutable, seleccionable normalmente abierta y normalmente cerrada.
Ajuste de corriente de salida S1,S2:<500mA
-Tiempo de respuesta<10ms
-Resolución:5,10mm
-Salida analógica de corriente: <0,5% del rango de tierra
-Tipo de salida: 4.... .20mA se puede ajustar
-Carga RA:<0,5KOhm
-Linealidad:<1,5% del rango
-Protección del cableado: fase inversa, sobrecarga, protección contra cortocircuitos
-Display: Diseño: LEDs rojos de 4 dígitos y 8mm de alto brillo
Rango de visualización::999.... .9999
-Estabilidad (deriva anual): <S0,3% del rango
-Temperatura: Temperatura media: -20.... .80°C
Temperatura ambiente: -20... .80°C .80°C
Temperatura de almacenamiento: -30.... .80°C
-Materiales: Carcasa del cabezal: plásticos técnicos
Carcasa: acero inoxidable 304
Parte en contacto con el medio: material anticorrosión PFA
Flotador: Material PFA anticorrosión
-Grado de protección:IP56
-Salida de cable: conector M12x1

-Food/Pharmaceutical
-Power plants
-Petrochemical
-Pulp/Paper
-Water Treatment
-Boiler

Needle Cables Signal
1 Brown 24v+
2 White S2
3 Blue 24V-
4 Black S1
5 Grey mA

LF601- A P A S A F5 L B Detailed description
LF601-                 LF601 series electronic level switch sensor
  A               2 switching outputs
  B               2 switching + 1 analogue 4-20mA outputs
  C               2 switching + 1 analogue 1-5V outputs
  D               2 switching + 1 analogue 0-10V outputs
    P             PNP output
    N             NPN output
      A           Fuel-control connection (default DN40)
      B           Flange connection
        A         Probe material: PFA
        B         Probe material: PP
          B       Float Material: PFA
          P       Float Material: PP
            F5     Resolution: 5mm
            F10     Resolution: 10mm
              L   Measuring range: L= mm (unit)
                S M12*1 connector (2m cable as standard)
* The selection table is for parameter selection only, and will be shipped with the corresponding parameter code.    * The alarm point moves from the electronic to the end of the bin, and the value becomes smaller.
