SN-51F Series Explosion-proof Impeller Flow Sensor

Product introduction

SN-51F series explosion-proof impeller flow sensor and an intelligent flow switch, is a compact flow sensor, with a small size, easy to set up and other advantages, built-in intelligent circuitry, you can arbitrarily set the flow upper and lower limits of the alarm value, you can remotely monitor the real-time flow conditions, the full range of parameters on-site arbitrary settings, and its impeller measuring medium through the flow through the sensor intelligent circuitry to process any programming. Hall-type pulse output, open collector PNP/NPN, strong driving ability
-Highly resistant to chemical corrosion characteristics
-Explosion-proof type easy to install
-Good stability, strong anti-interference ability
└Good reliability, maintenance-free

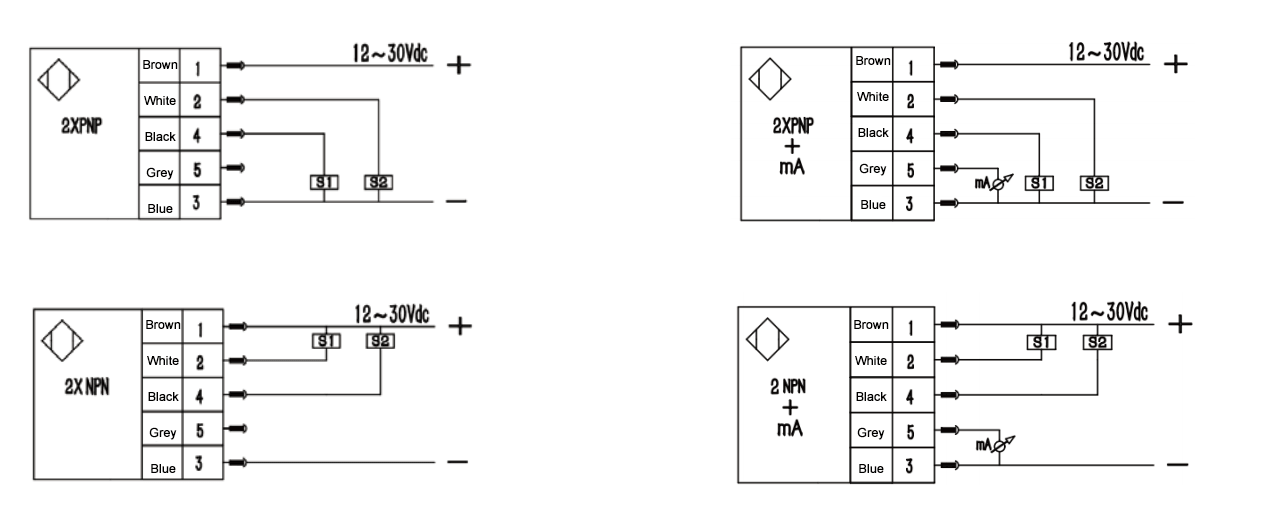

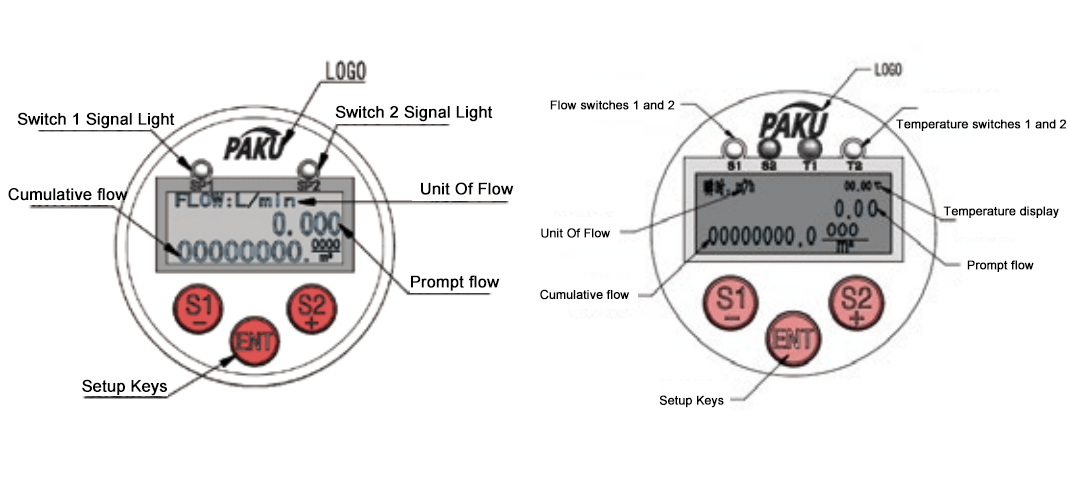

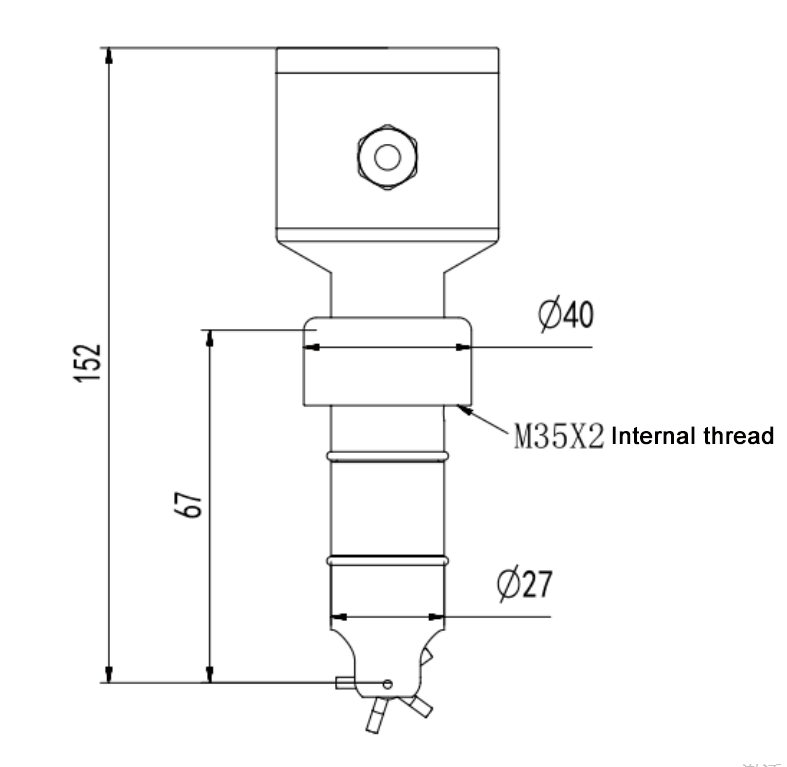

Wiring Diagram Panel Schematic Dimension Drawing Technical Indicators Selection Table

Flow rate range 0.15 ~6m/s
Pipe diameter range DN15-DN600 (½ - 24 inches)
Supply voltage DC 5 ~24V
Repeatability Accuracy/Linear Accuracy ± 1.5℅ Full Scale
Temperature pressure PP body 1.7bar@90℃
PVDF body 14.0bar@25℃ 1.7bar@100℃
PVDF body 1.7bar@100℃
Overcurrent components Sensor body 304 stainless steel
O-ring FPM/EPDM
Impeller PVDF
Bearings/shafts High temperature oxidation pick ZrO2 (ceramics)
SN-51F A P 25  B A Detailed description
SN-51F -           SN-51F series explosion-proof impeller flow sensor
  A           2 flow switches
  B           2 temperature switches + 1 temperature 4-20MA output
  C           2 flow switches + 1 flow 4-20MA output
  D           1 temperature 4-20MA output
  E           1 flow rate 4-20MA output
  F           2 analog quantity 4-20MA output (temperature, flow)
  G           4 switch quantities (temperature, flow)
  H           4 switch quantity (temperature, flow quantity) + 2 analog quantity
4-20MA output (temperature, flow)
    P         PNP output
    N         NPN output
      25        Pipe diameter: DN25
      32        Pipe diameter: DN32
      40        Pipe diameter: DN40
      DN …       Instruct the specific pipe diameter when ordering (DN15-DN600)
        B     Impeller material: PVDF
            Body material: 304 stainless steel
            A Rotary shaft: ZrO2
 *The selection table is for parameter selection only, and the corresponding encoding is factory-delivered by the parameters.
